2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
Product Code: FB E2PMST2
5060523527458
E2PMST2
Loading …

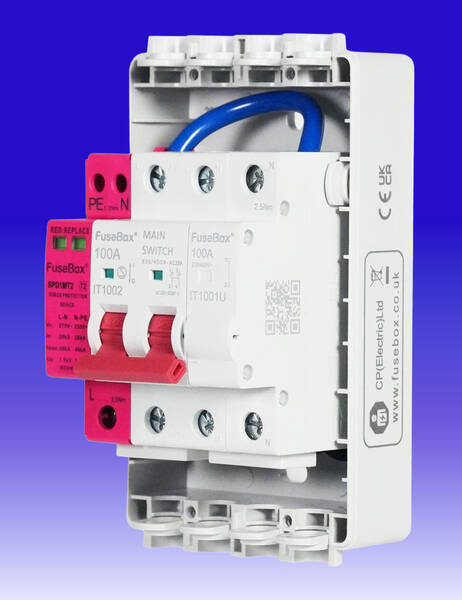

Shown without cover
Height: 150mm
Width: 86mm
Depth: 83mm
FuseBox
2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
- Number of poles: 2P
- Rated impulse withstand voltage: 6000V
- Rated current: 100A
- Rated voltage: 230V, 50Hz
- Mechanical endurance: 2000
- Protection degree: IP20
- Operating temperature: -25°C to 40°C
- Terminal size: 35mm²
- Tightening torque (Nm): 2.5Nm (main switch)
- Enclosure material: PC
-
Type 2 SPD:
- Standard: EN 61643-11 (Type 2)
- Flag indication: Green: Good / Red: Replace
- Technology: MOV (Metal Oxide Varistor) /GDT (Spark Gap)
- Voltage (Un): 230V~
- System: TN-C-S, TN-S, TT
- Terminal capacity: L: 16mm² N/PE : 10mm²
- Recommended torque: L: 2.5Nm /PE 1.2Nm / N 1.2Nm
- Maximum operating voltage (Uc): L-PE 275V; N-PE 255V
- Nominal discharge current: (In 8/20µs) 20kA
- Maximum discharge current: (Imax 8/20µs) 40kA
- Voltage protection level: L-PE =1.5kV ; N-PE =1.3kV
- Response time (tA): =25ns
- Maximum back up fuse: 100A fuse gG
- Short circuit withstand (IsccR): 25kA
- Temporary overvoltage (UT): 335V/5 sec - withstand
Height: 150mm
Width: 86mm
Depth: 83mm
|
