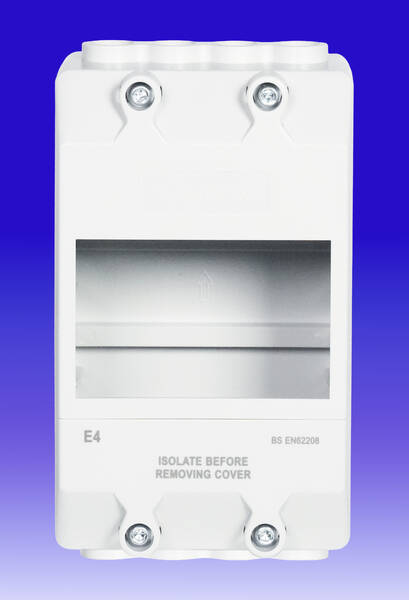

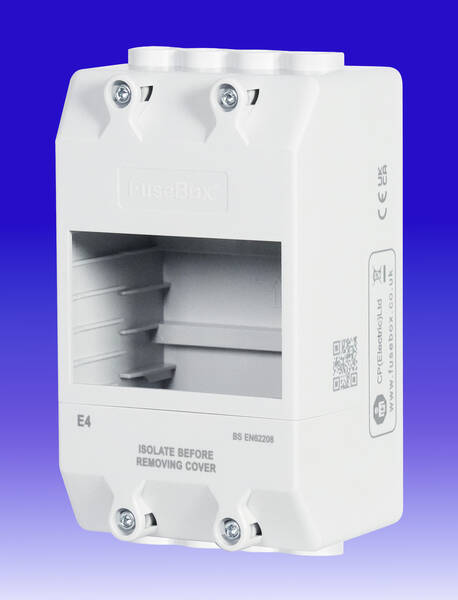

4 Module Split Lid Enclosure c/w DIN Rail - IP20
Product Code: FB E4
5060523527472
E4
Loading …
Height: 150mm
Width: 86mm
Depth: 65mm
FuseBox
4 Module Split Lid Enclosure c/w DIN Rail - IP20
4 Module Split Lid Enclosure c/w DIN Rail - IP20
Empty enclosure with DIN rail for housing RCD's, contactors, and other control devices.
Height: 150mm
Width: 86mm
Depth: 65mm
Technical:Datasheet - 530kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB E4
4 Module Split Lid Enclosure c/w DIN Rail - IP20 |
FuseBox RCDs
Loading …
FuseBox
2 Pole RCDs
2 Pole RCDs
Type A RCDs for FuseBox consumer units.
Technical:Datasheet - 300kb pdf Instructions - 2.2mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 63A 2 Pole 30mA Type B RCD
Loading …
FuseBox
63A 2 Pole 30mA Type B RCD
63A 2 Pole 30mA Type B RCD
63A 2 Pole 30mA Type B RCD for FuseBox consumer units.
Suitable for:
- EV Electric vehicle charging
(DC fault current greater than 6mA)
- PV photovoltaic systems
- Inverters
- Uninterruptible power supplies (UPS)
Suitable for:
- EV Electric vehicle charging
(DC fault current greater than 6mA)
- PV photovoltaic systems
- Inverters
- Uninterruptible power supplies (UPS)
- 63A rated
- 2 pole
- 30mA rated fault current
- Type B
- Max. terminal capacity: 35mm²
Technical:FBRTB630302M Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Contactors
Loading …
FBINC202
See product for Accessories
FuseBox
Contactors
Contactors
| See product for Accessories |
Technical:Datasheet - 410kb pdf Instructions - 210kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
16A 24hr/7 Day Digital DIN Rail Timer - 1 Channel
Loading …
FuseBox
16A 24hr/7 Day Digital DIN Rail Timer - 1 Channel
16A 24hr/7 Day Digital DIN Rail Timer - 1 Channel
16A 24hr/7 Day Digital DIN Rail Timer - 1 Channel, for FuseBox consumer units.
- 16A/250V AC resistive load
- 4A/250V AC inductive load
- 35mm DIN rail mounting
- Max. cable: 4mm²
- 2 module
- LCD display
- Memory locations: 16 ON / 16 OFF
- Functions: ON/OFF / Pulse / Countdown
- Lithium battery, 150hr reserve
- Voltage free contacts
Technical:Datasheet - 270kb pdf Instructions - 350kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100A Single Phase kWh Meter (MID certified)
Loading …
FuseBox
100A Single Phase kWh Meter (MID certified)
100A Single Phase kWh Meter (MID certified)
Single phase bi-directional (import & export energy) MID certified energy meter suitable for domestic, commercial and industrial single phase applications up to 100A (max) direct connected.
Single module, DIN rail mounting with easy to read backlit LCD display and pulse output. Displays active energy (kWh), it also measures common electrical parameters including reactive energy (kVArh), voltage (V), current (A), active power (W), reactive power (Var), power factor (pf) and frequency (Hz). These can be viewed using the touch screen button on the front of the meter.
Single module, DIN rail mounting with easy to read backlit LCD display and pulse output. Displays active energy (kWh), it also measures common electrical parameters including reactive energy (kVArh), voltage (V), current (A), active power (W), reactive power (Var), power factor (pf) and frequency (Hz). These can be viewed using the touch screen button on the front of the meter.
- Maximum rated current: 100A
- Nominal voltage: 230V/50Hz
- MID approved
- 35mm top hat DIN rail mounted
- Bi-directional
- Torque (switch terminals): 2.5Nm
- Maximum cable: 25mm²
- Impulse constant: 1000 imp/kWh
- Complies with EN 50470-1/3
Technical:FBKWH1M100 Datasheet - 420kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Bell Transformer
Loading …
FuseBox
1A Bell Transformer 8-24V
1A Bell Transformer 8-24V
- Input voltage: 230V, 50Hz
- Rating:
8V - 1A
16V - 0.5A
24V - 0.33A - 35mm DIN rail mounting
- Torque (switch terminals): 1.5Nm
- Max. cable: 4mm²
- Power consumption: 0.9W
- Complies with EN 61558-2-8/ EN 61558-1
Technical:Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
