16A 30mA DP Mini AFDD/RCBO B Curve (Type A) 10kA (1 Module)
Product Code: FB MAFDD101630B
5060523528899
MAFDD101630B
Loading …

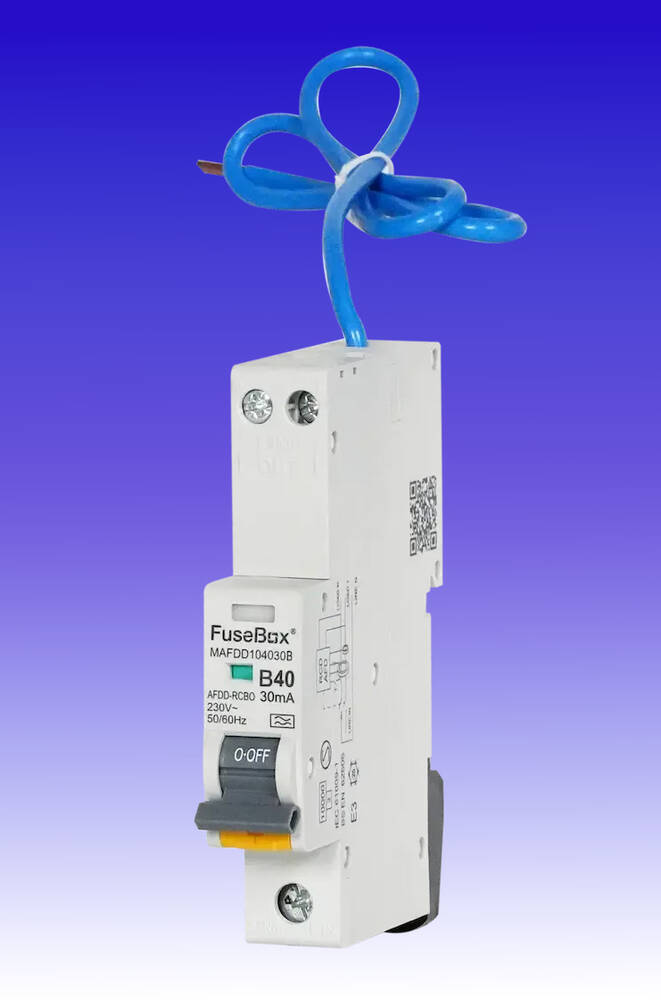

40A shown
FuseBox
16A 30mA DP Mini AFDD/RCBO B Curve (Type A) 10kA (1 Module)
16A 30mA DP Mini AFDD/RCBO B Curve (Type A) 10kA (1 Module)
FuseBox combined mini AFDD/RCBO (1P+N), with switched Line and Neutral.
Designed for the demands of increasingly electrified buildings, FuseBox's mini 10kA AFDD with RCBO combines three layers of protection in one compact device to help detect dangerous electrical faults before they become a fire risk.
Designed for the demands of increasingly electrified buildings, FuseBox's mini 10kA AFDD with RCBO combines three layers of protection in one compact device to help detect dangerous electrical faults before they become a fire risk.
- 6A to 40A options for a wide range of commercial and industrial applications
- Combines overcurrent, 30mA residual current, and arc fault protection in a single device
- Detects both series and parallel arc faults by analysing the circuit waveform
- Compact single-module design for DIN rail mounting
- Automatically disconnects the affected circuit when an arc fault is detected
- Clear LED indication for fast and easy fault finding
- Required for installations in buildings over 18m high or more than six storeys
- BS 7671 requires AFDDs on socket outlet circuits up to 32A in higher-risk residential buildings (HRRBs). It also recommends them on all other 32A socket outlet circuits
Technical:10kA AFDD Datasheet - 6mb pdf 10kA AFDD Flyer - 310kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB MAFDD101630B
16A 30mA DP Mini AFDD/RCBO B Curve (Type A) 10kA (1 Module) |
