EV Consumer Unit 100A MS + 40A SP+N BD RCBO (Type A) + T2 SPD - IP65
Product Code: FB P65EV40BDZ
5060523528189
P65EV40BDZ
Loading …
Height: 223mm
Width: 165mm
Projection: 100mm
FuseBox
EV Consumer Unit 100A MS + 40A SP+N BD RCBO (Type A) + T2 SPD - IP65
EV Consumer Unit 100A MS + 40A SP+N BD RCBO (Type A) + T2 SPD - IP65

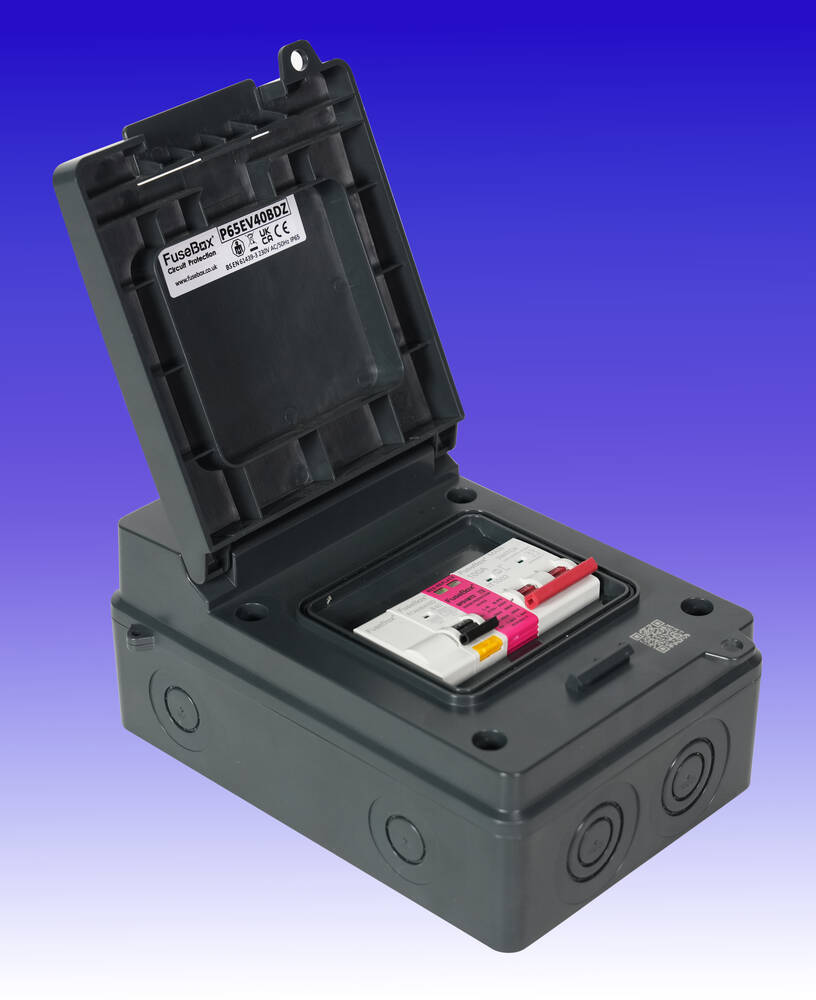

The FuseBox P65EV40BDZ is a 5 module EV consumer unit fitted with a 100A Main Switch, 40A SP+N bi-directional RCBO and a Type 2 SPD. Its grey RAL 7016 ABS enclosure carries an IP65 ingress rating and IK07 impact rating.
The unit includes shrouded Earth and Neutral terminals, a padlockable drop-down cover, captive stainless steel screws and wire-tag sealing points. Cable drill-outs on the top, bottom, sides and rear start at 20mm and expand to 32mm, supporting flexible installation.
The unit includes shrouded Earth and Neutral terminals, a padlockable drop-down cover, captive stainless steel screws and wire-tag sealing points. Cable drill-outs on the top, bottom, sides and rear start at 20mm and expand to 32mm, supporting flexible installation.
- 5 module ABS enclosure
- 100A rated busbar
- 100A Main Switch (35mm max. cable)
- 40A Type A bi-directional RCBO
- Type 2 SPD
- IP65 protection degree
- IK07 impact rating
- Captive stainless steel cover screws
- Padlockable front cover
- Wire seal for front cover on left and right side
- Shrouded Neutral & Earth terminals
- Drill outs on top/bottom/sides/rear 20-32mm (expandable)
- No tail clamp provided, DIN rail pre-drilled
Height: 223mm
Width: 165mm
Projection: 100mm
Technical:IP65 Enclosures Datasheet - 840kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB P65EV40BDZ
EV Consumer Unit 100A MS + 40A SP+N BD RCBO (Type A) + T2 SPD - IP65 |
