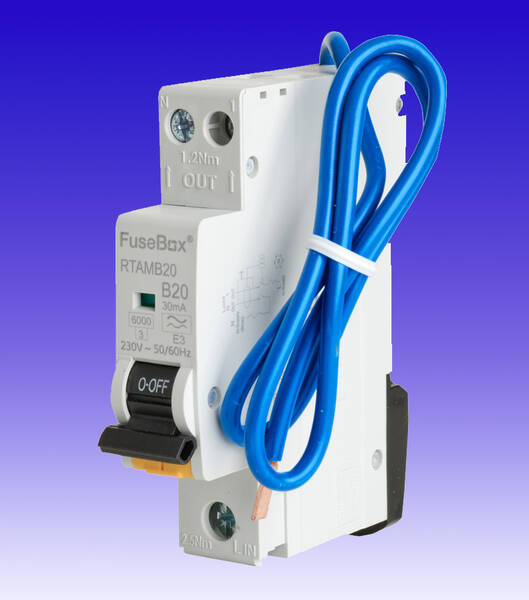

20A 30mA RCBO - FuseBox 6kA (Type A) B Curve (Compact)
Product Code: FB RTAMB20
5060523523580
RTAMB20
Loading …
FuseBox
20 Amp 30mA RCBO - Type A
B Curve
20 Amp 30mA RCBO - Type A
B Curve
Compact RCBO with switched LINE and NEUTRAL. Used for the protection against overload, short circuit and earth leakage. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 20A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
Technical:FuseBox Brochure - 7mb pdf Compact RCBO Datasheet - 250kb pdf |
|
