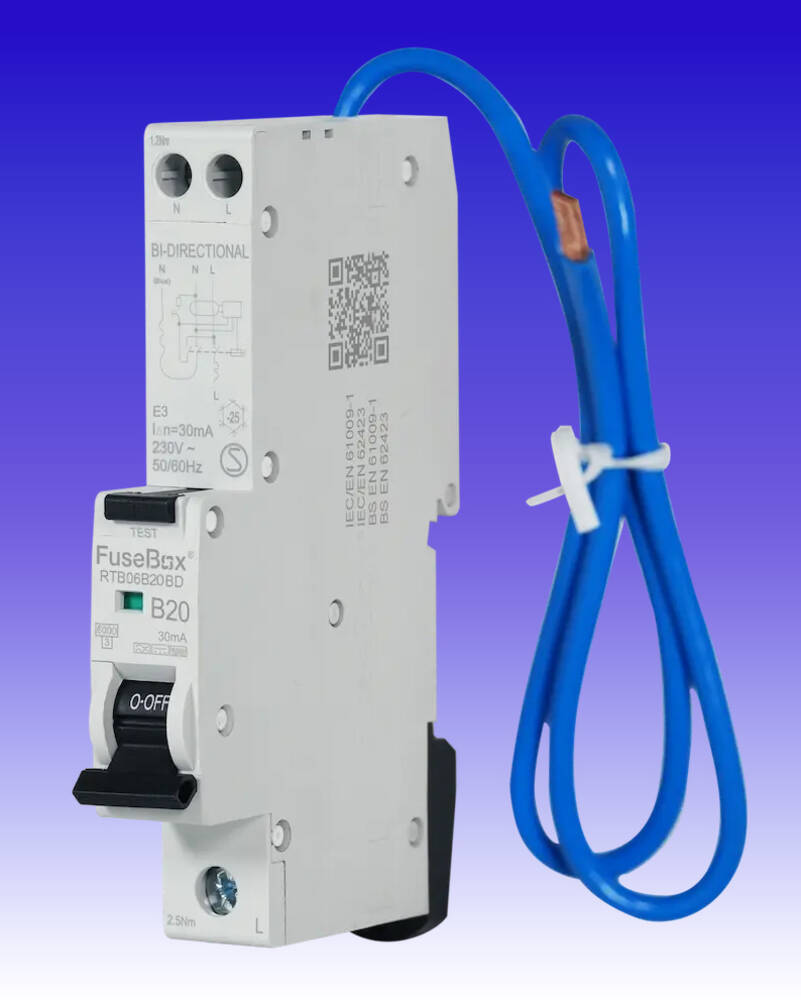

20A 30mA RCBO - FuseBox 6kA (Type B) B Curve - Bi-directional
Product Code: FB RTB06B20BD
5060523528974
RTB06B20BD
Loading …
FuseBox
20A 30mA RCBO 6kA (Type B)
B Curve - Bi-directional
20A 30mA RCBO 6kA (Type B)
B Curve - Bi-directional
Heat pumps. Solar. EV charging. Today’s installs demand an RCBO that keeps up.
FuseBox's Type B bi-directional RCBO is designed for modern electronic loads, whichever way the current flows.
30mA earth leakage, overcurrent, and short circuit protection in both directions. Detects faults in smooth DC, pulsed DC, and AC currents. Suitable for domestic and industrial applications, with a 6kA PFC.
FuseBox's Type B bi-directional RCBO is designed for modern electronic loads, whichever way the current flows.
30mA earth leakage, overcurrent, and short circuit protection in both directions. Detects faults in smooth DC, pulsed DC, and AC currents. Suitable for domestic and industrial applications, with a 6kA PFC.
- Rating: 20A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: B
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC EN 61009-1
Technical:TypeB RCBO Datasheet - 300kb pdf TypeB RCBO Flyer - 175kb pdf |
|
