4 Gang Grid Plate Screwless - Brushed Chrome
Product Code: GD SF004BC
5055832964599
GDSF004BC
Loading …
Knightsbridge
4 Gang Grid Plate Screwless - Brushed Chrome
4 Gang Grid Plate Screwless - Brushed Chrome
Designed and finished to coordinate with the Screwless Switches & Sockets range.
- 4 Gang Screwless Grid Faceplate
- Use in conjunction with 1 x GDS002F (sold separately)
- FOR USE WITH SCREWLESS GRID SYSTEM ONLY

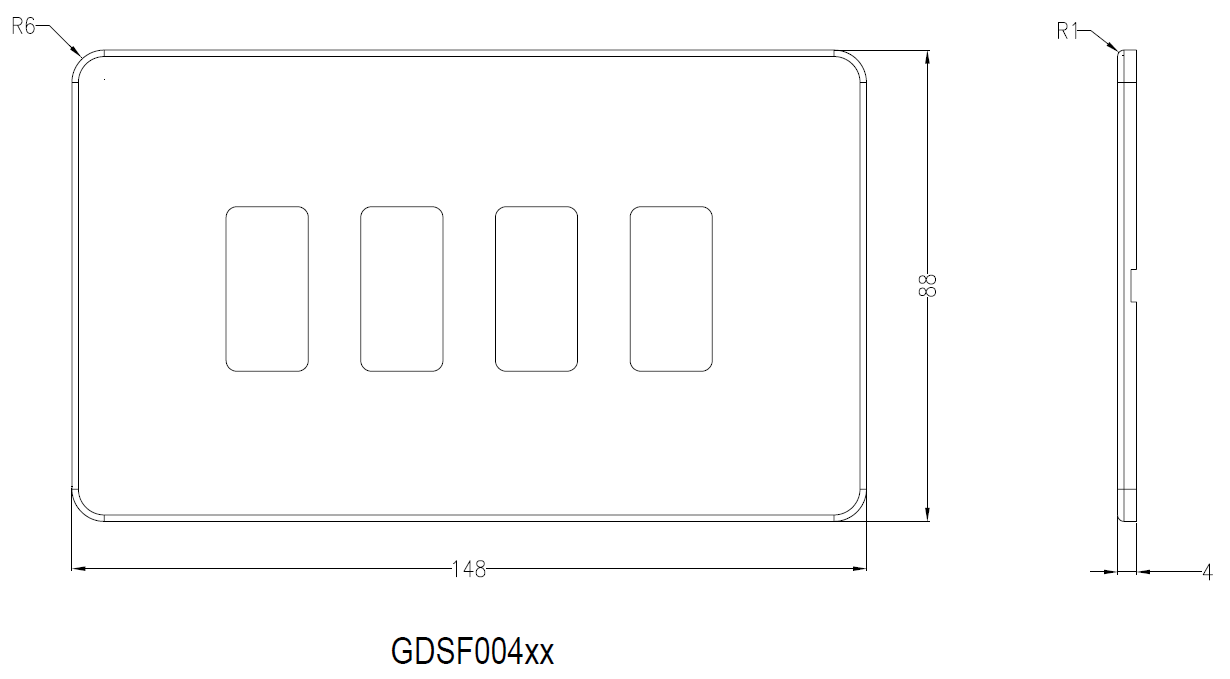

Technical:GDSF004BC Datasheet GDSF004BC Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
GD SF004BC
4 Gang Grid Plate Screwless - Brushed Chrome |
Quinetic Wireless Grid Switch Compatible with Knightsbridge Grid
Loading …
QU GDGD
Watch Video
See product for Accessories
Quinetic
Grid Switch - MLA Knightsbridge (compatible)
Grid Switch - MLA Knightsbridge (compatible)
The Kinetic wireless grid switch is compatible with Knightsbridge range grid system and can be installed into Knightsbridge grid plates.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
The switch cover is interchangeable, allowing the usage of any Knightsbridge Grid switch cover.
It can be used with the standard or with the dimming Quinetic receiving controller.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy - This transmits a signal to the receiver to turn the lamp or other load on or off.
The grid switch can be used from a maximum 30m indoors.
There is no longer a need to make holes or channel out for switch lines in the wall if you use the Quinetic wireless switch.
The Quinetic switch is safe, convenient and extremely simple to install and use.
- The QUGDGD is compatible with the Knightsbridge Grid system and can be installed into any Knightsbridge Grid plates.
- Whether you require any switches within the grid to be transformed in to 2, 3, 4 (up to 10 way switching) this is a perfect solution whilst aesthetically looking exactly the same as any of the standard switches you have in the grid.
- It can be used with our standard or dimming Quinetic receiving controllers giving great versatility.
- As is the case with all our Quinetic switches, It has a built-in micro energy generator – which when the switch is pressed the kinetic system transforms the movement into energy.
- This transmits a signal to the receiver to turn the lamp or other load on or off.
- Work Type: Push Button
- Power Source: Micro Energy Acquisition and self-powered
- Communication Model: FSK
- Work Frequency: 433Hz
- Number of Keys: 1 (1 gang)
- Life Time: 200,000 times on/off
- Control Distance: 30m (indoor)
- Control Method: Pairing with Quinetic Wireless Controller
- 3 Year Warranty
Watch Video
| See product for Accessories |
Technical:QUGDGD Datasheet 2.2mb - pdf QUGDGD Instructions 1.4mb - pdf |
|
