LOCA - Miniature Recessed PIR - White
Product Code: GL 25155W
5020024511905
ZN-25155-W
Loading …
Diameter: 50mm
Cut-out: 42mm
Forum
LOCA - Miniature Recessed PIR
White
LOCA - Miniature Recessed PIR
White
Material:
Polycarbonate with White finish
The LOCA PIR is LED compatible, ranging from 0.1W to 400W load (or 800W incandescent).
This model has a 42mm cut out diameter with only a 50mm diameter bezel, so is very discreet.

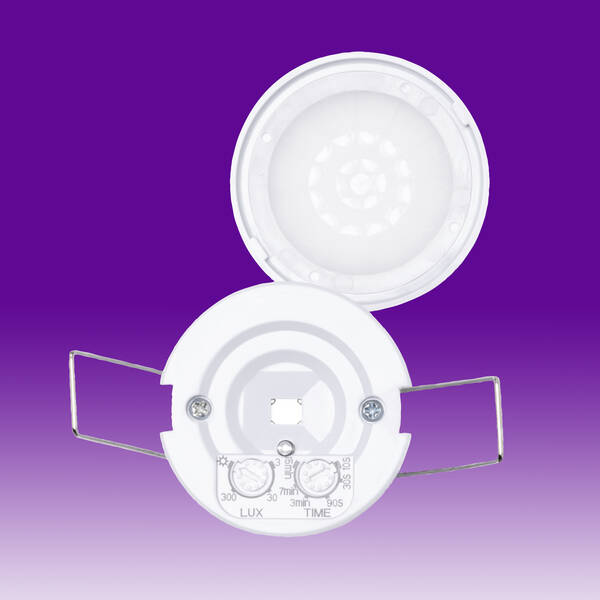

The bezel can be easily removed to access the adjustments, including a 10 second to 15 minute timer.
Polycarbonate with White finish
The LOCA PIR is LED compatible, ranging from 0.1W to 400W load (or 800W incandescent).
This model has a 42mm cut out diameter with only a 50mm diameter bezel, so is very discreet.
The bezel can be easily removed to access the adjustments, including a 10 second to 15 minute timer.
- Input voltage: 220-240V AC
- Frequency: 50/60Hz
- Ambient light: <3-2000 Lux (adjustable)
- Time delay: Min. 10sec., max. 15min.
- Maximum switching capability:
800W Incandescent
400W LED
- Installation height: 2.2 to 4m
- Detection range: 360°
- Detection distance: 8m max.
- Detection moving speed: 0.6-1.5m/s
- Power consumption: approx. 0.5W
- IP rating: IP20
Diameter: 50mm
Cut-out: 42mm
|
