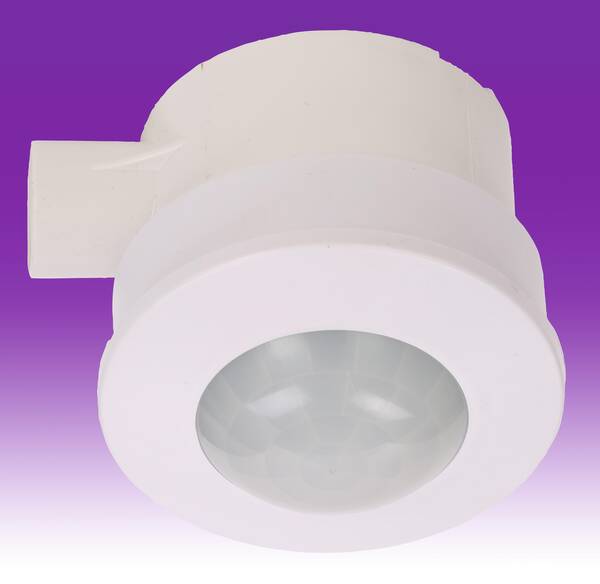

THEA - Conduit, Surface & Recessed Mount PIR - White
Product Code: GL 31805W
5020024516245
ZN-31805-W
Loading …
With surface mounting box
Attached to conduit box
Diameter: 80mm
- Flush mounted -
Cut-out: 62mm
Projection: 18mm
- Surface mounted (w/ patress) -
Projection: 39mm
Forum
THEA - Conduit, Surface & Recessed Mount PIR
White
THEA - Conduit, Surface & Recessed Mount PIR
White
Material:
Polycarbonate with a White finish.
The THEA PIR is LED compatible, ranging from 0.1W to 600W load (or 1200W incandescent).
This model has a 3 way mounting system which allows it to either be recessed using the spring clips provided, surface mounted on the accompanying patress, or attached to a conduit box via the specially designed patress.
Polycarbonate with a White finish.
The THEA PIR is LED compatible, ranging from 0.1W to 600W load (or 1200W incandescent).
This model has a 3 way mounting system which allows it to either be recessed using the spring clips provided, surface mounted on the accompanying patress, or attached to a conduit box via the specially designed patress.
- Input voltage: 220-240V AC
- Frequency: 50/60Hz
- Ambient light: <3-2000 Lux (adjustable)
- Time delay: Min. 10sec., max. 30min.
- Maximum switching capability:
1200W Incandescent
600W LED
- Installation height: 2.2 to 4m
- Detection range: 360°
- Detection distance: 8m max.
- Detection moving speed: 0.6-1.5m/s
- Power consumption: approx. 0.5W
- IP rating: IP20
Diameter: 80mm
- Flush mounted -
Cut-out: 62mm
Projection: 18mm
- Surface mounted (w/ patress) -
Projection: 39mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
GL 31805W
THEA - Conduit, Surface & Recessed Mount PIR - White |
