12/15/18W CCT Adjustable Circular LED Panel - IP54 - 216mm - Due 3rd April
Product Code: GL CPLCW18
5056270886146
CPLCW18
Loading …
GLCPLCW12 shown
GLCPLCW12 shown
GLCPLCW12 shown
GLCPLCW12 shown
GLCPLCW12 shown
Diameter: Ø216mm
Projection: 18mm
Recess requirements:
Cut-out: 65-190mm
Minimum void: 50mm

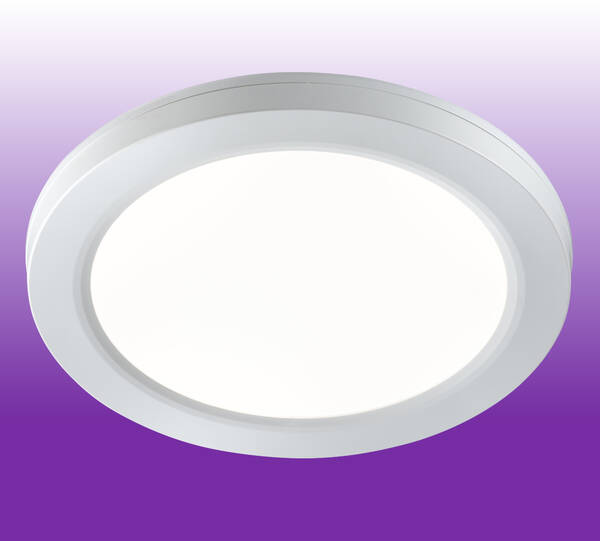

12/15/18W CCT Adjustable Circular LED Panel
IP54 - 216mm
IP54 - 216mm
Redefine your lighting experience with the evolution of CPL LED Panel downlights.
Designed with performance and adaptability in mind, the slim panels offer a range of features which maximise flexibility. Featuring dual mount options, seamlessly install it as either a recessed or surface-mounted fixture, depending on your space requirements.
Alongside dual mount installation, the fittings are dimmable, IP54 rated, as well as wattage and CCT (3000K/ 4000K/ 5700K) selectable, fully adaptable to the ambience and functionality of any room. Ideal for commercial, retail and domestic applications.
Available in 4 sizes and with a range of magnetic bezels, it is truly a perfect fit for any installation.
Designed with performance and adaptability in mind, the slim panels offer a range of features which maximise flexibility. Featuring dual mount options, seamlessly install it as either a recessed or surface-mounted fixture, depending on your space requirements.
Alongside dual mount installation, the fittings are dimmable, IP54 rated, as well as wattage and CCT (3000K/ 4000K/ 5700K) selectable, fully adaptable to the ambience and functionality of any room. Ideal for commercial, retail and domestic applications.
Available in 4 sizes and with a range of magnetic bezels, it is truly a perfect fit for any installation.
- Wattage selectable: 12W / 15W / 18W

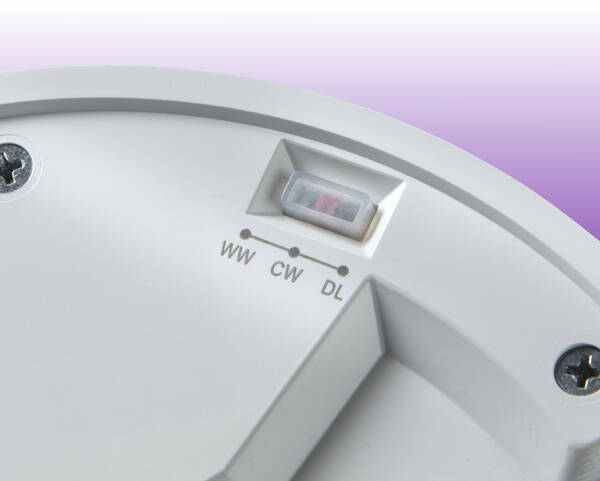

- CCT adjustable: 3000K / 4000K / 5700K
- SMD LEDs
- Lumen output:
12W - 1115/1235/1140lm
15W - 1390/1560/1420lm
18W - 1675/1875/1695lm - CRI: >80
- Beam angle: 115°
- Dimmable (check compatibility before installation)

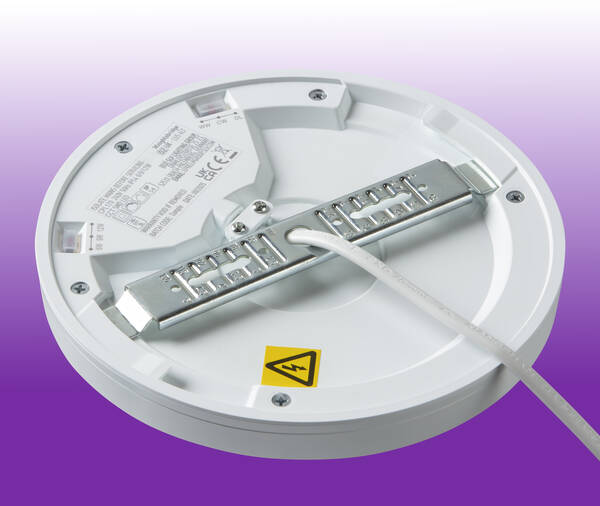

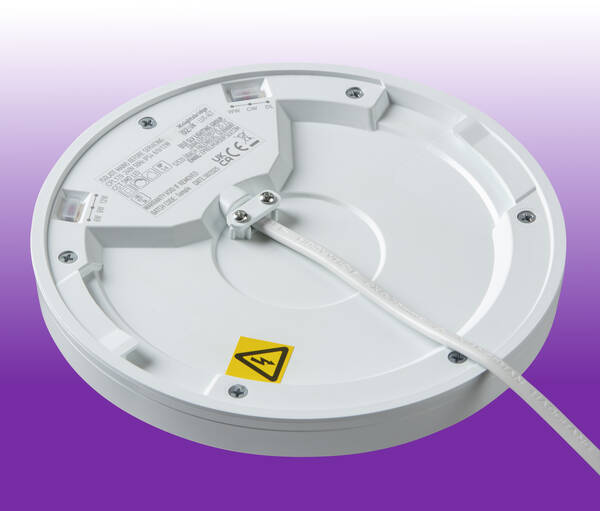

- Dual mount design: recessed or surface mountable

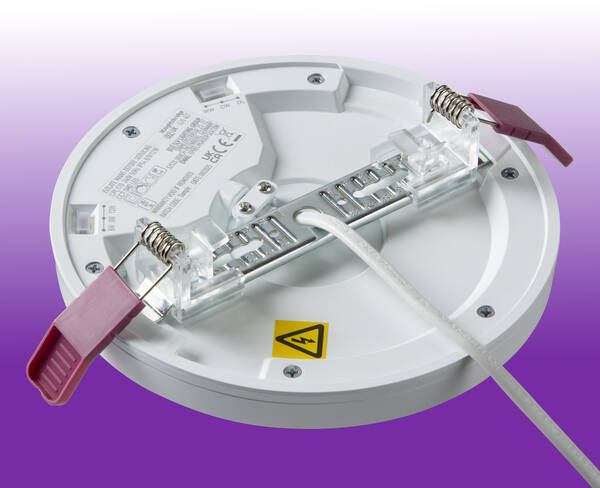

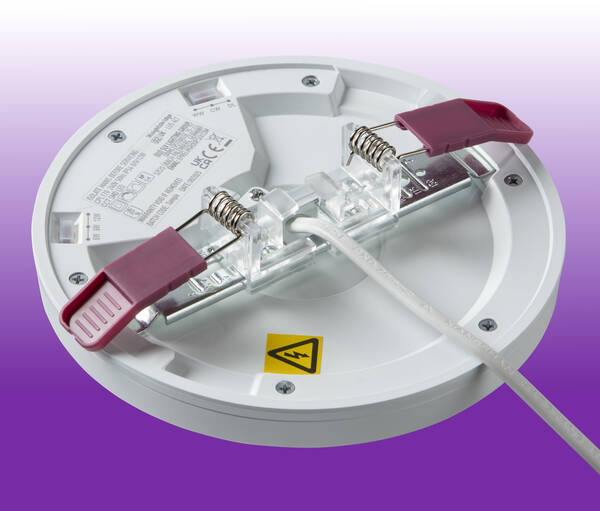

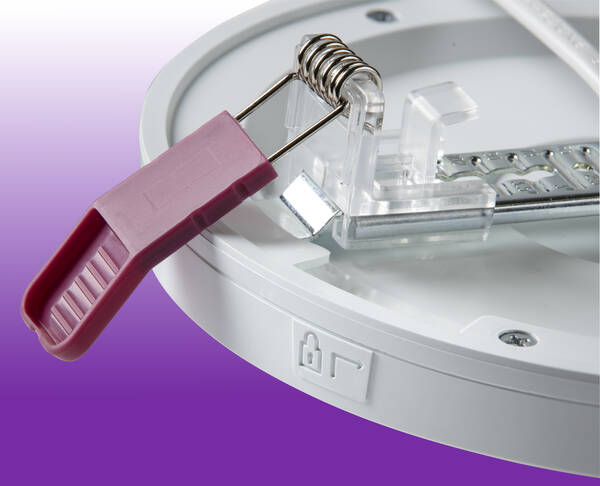

- Adjustable recessed bracket, suitable for 65mm to 190mm cut-out
- Polycarbonate construction
- Class II, double insulated
- IP54 rated
- Fitting comes with white bezel as standard. Magnetic bezels available in Matt Black, Polished Chrome and Chrome (sold separately)
- Emergency kit available: GLCPLEM (sold separately)
- 5 year warranty
Diameter: Ø216mm
Projection: 18mm
Recess requirements:
Cut-out: 65-190mm
Minimum void: 50mm
Technical:GLCPLCW Instructions - 1.14mb pdf GLCPLCW18 Datasheet - 130kb pdf |
|
