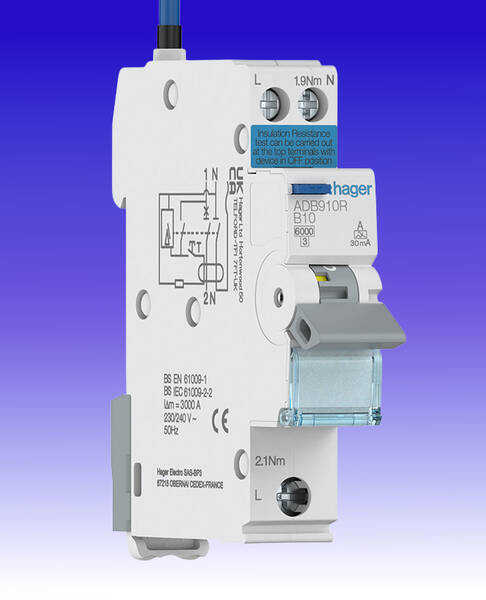

10A 30mA RCBO 6kA - Hager (Type A) B Curve Bi-directional (Compact)
Product Code: HG ADB910R
3250610087589
ADB910R
Loading …
Hager
10A 30mA RCBO 6kA (Type A)
B Curve Bi-directional (Compact)
10A 30mA RCBO 6kA (Type A)
B Curve Bi-directional (Compact)
The ADB9 range of RCBOs aids compliance with BS 7671 (latest edition), where additional protection by means of a 30mA RCD is required. Featuring a 2P switched neutral design and bi-directional functionality, is well adapted for micro-generation applications, where a Type A RCBO may be required.
Insulation resistance testing (IR test) can be carried out at 500V DC on the load side terminals with the device in the off position, without the need to disconnect the Line or Neutral conductors.
Insulation resistance testing (IR test) can be carried out at 500V DC on the load side terminals with the device in the off position, without the need to disconnect the Line or Neutral conductors.
- Rating: 10A
- Tripping curve: B
- Number of poles: 1P + N (switched Neutral)
- Residual operating current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Longer Neutral fly lead (500mm)
Technical:Datasheet - 600kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG ADB910R
10A 30mA RCBO 6kA - Hager (Type A) B Curve Bi-directional (Compact) |
