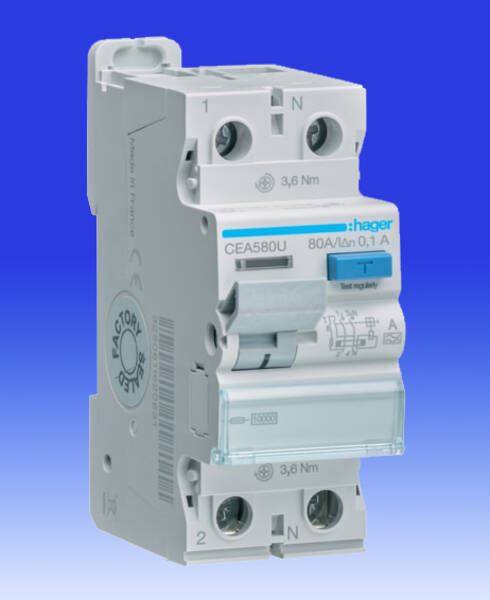

80 Amp 100mA 2 Pole RCD (Type A) - Hager
Product Code: HG CE280U
3250611651741
CEA580U
Loading …
35 mm
Selective Circuits within a Consumer unit or Enclosure
Hager - RCD
80 Amp 100mA 2 Pole RCD (Type A)
80 Amp 100mA 2 Pole RCD (Type A)
An RCD provides protection against earth faults occurring in equipment and reduces the effects of electric shock on human beings and thus saves lives.
An RCD measures the current flowing in the live and neutral cables and if there is an imbalance, that is current flowing to earth above the RCD sensitivity, the RCD will trip and cut off the supply
- All Hager RCDs incorporate a filtering device to provide protection against transient surges in the supply to the unit, thus reducing the occurrence of unwanted tripping.
- Hager RCDs must never be used as the sole method of direct contact protection, but are invaluable in providing supplementary protection in high risk environments where damage may occur.
- The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate, i.e. the RCD is 'trip-free'. It is not possible to hold the contacts closed when a fault condition exists.
- When in the OFF position a contact gap of 4 mm is present, enabling Hager RCDs to be used as isolating switches where appropriate.
35 mm
Selective Circuits within a Consumer unit or Enclosure
Technical:RCD Selection and Info |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG CE280U
80 Amp 100mA 2 Pole RCD (Type A) - Hager |
