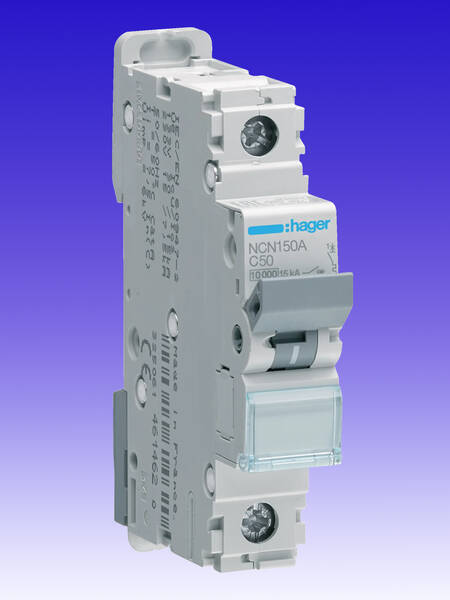

50A Hager MCB 10kA - C Curve
Product Code: HG NCN150A
3250614615573
NCN150A
Loading …
25 mm on all mcb's
Hager 10kA MCB ( Type C )
Rated 50 Amps
Rated 50 Amps
Type C devices are capable of supplying the majority of inductive and capacitive loads such as motors, transformers and tungsten or fluorescent lighting.
Surges on energisation, for example with discharge lighting, may well reach 25 times the rated current of the device, but only for very short duration. Type B devices will often be adequate, but for more specialised circuits, a Type C may be required. The lighting fitting manufacturer’s recommendations should be observed.
Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
- Hager commercial MCBs have a short circuit breaking capacity of 10000A (M10).
- The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
- The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
- When the green flag below the dolly is visible, then a contact gap of 4 mm has been achieved. Hager MCBs may therefore be used as single pole isolating switches where appropriate.
25 mm on all mcb's
Technical:MCB Selection |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG NCN150A
50A Hager MCB 10kA - C Curve |
