5+5 Way Twin RCD Split Load Consumer Unit c/w 100A + 2 x 63A RCD + 8 MCBs
Product Code: HG VC755H1X
3250610451403
HQ3VC3172
Loading …
Width 485mm
Height 245mm
Depth 105mm
Weight 2.75kg
hager

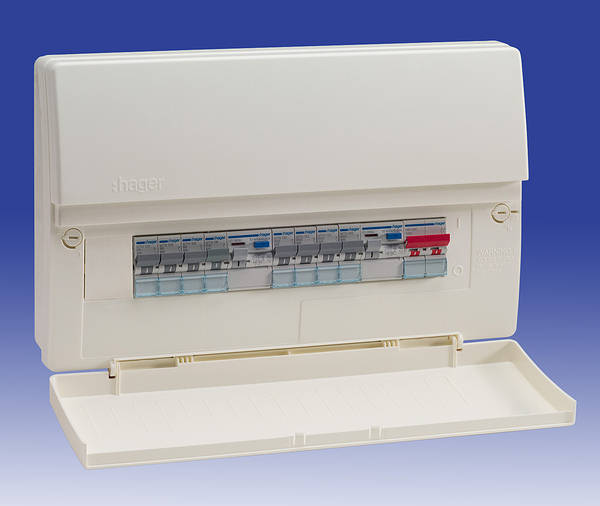

5+5 Way Twin RCD Split Load Consumer Unit
c/w 100A + 2 x 63A RCD
c/w 8 x MCBs: 3 x 6 amp, 1 x 16 amp, 3 x 32 amp, 1 x 40 amp
5+5 Way Twin RCD Split Load Consumer Unit
c/w 100A + 2 x 63A RCD
c/w 8 x MCBs: 3 x 6 amp, 1 x 16 amp, 3 x 32 amp, 1 x 40 amp
form have been designed to complement and integrate into its surroundings.
The VC755H1 10 way consumer unit is supplied complete with 2 x 63A 30ma RCDs and a 100A Main Switch isolator.
Uses a fixed busbar configuration with 5 ways on each of the RCD protected circuits.
Provided with multiple cable entries / knockouts on the top, bottom and rear of the unit.
- 1 x 100 Amp DP Main switch controls the entire board and allows for up to 5 x RCBO's or MCB's circuits.
- 2 x 63 Amp 30mA RCD allowing form RCD circuits to be split around a building.
- Max No of MCB's or RCBO's = 10.
- Dual 63Amp 30mA RCD Protection.
- Allows 100% RCD Protection.
- Main Switch controls all circuits.
- Second RCD for 2nd Group of Circuits.
- Easy and fast unit to fit.
- Largest amount of cabling space and in all the right places.
- Easy to remove cable entries safely.
- Top wall removes and reseals to IP4X.
- Fewer tools required to fit.
- Integrated spirit level allows for simple levelling.
Width 485mm
Height 245mm
Depth 105mm
Weight 2.75kg
