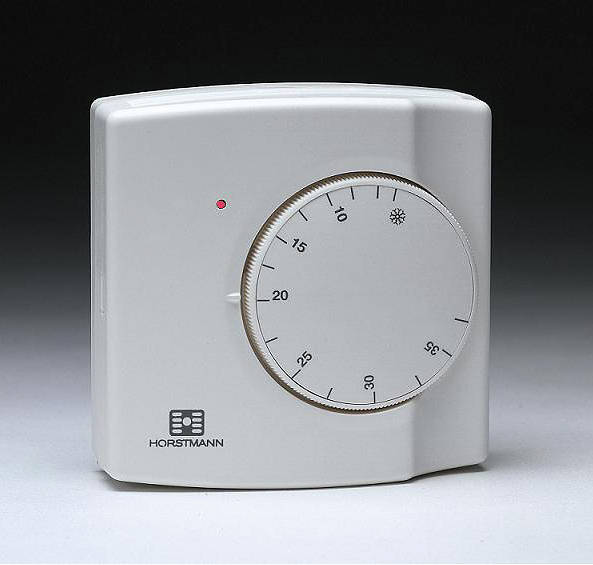

10 Amp Room Thermostat
Good looking and reliable, the Horstmann room thermostat is suitable for
all central heating systems which respond to a 230V mains electrical on/off signal*.
A bimetallic sensor ensures excellent response to temperature changes
and a simple rotating dial allows setting between 5°C to 35°C.
Units can be mounted directly onto the wall using the built-in pattress.
*A mains neutral connection is also required.
Adjustable temperature range 5°C to 35°C
- 10 Amp (S.P.S.T) contacts
- Ventilated enclosure
- Bimetalic sensor system with
- accelerator resistor
Contact configuration - SPST
- Temperat ure range - +5°C to +35°C
- Switching current at 250V AC - 10 Amps maximum
- Switching differential - Approx. +0.5°C
- Sensor system - Bimetallic
- Enclos ure protection - IP 20
