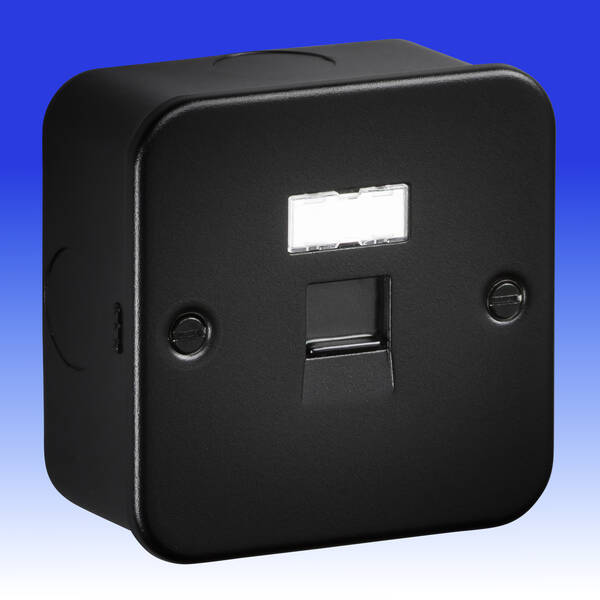

RJ45 CAT6A UTP Network Outlet - Metalclad Textured Sand Black
Product Code: KB MC6TB
5056270888966
MC6TB
Loading …
EACH
5+
£9.99
£9.80
EACH
5+
£11.99
£11.76
Description
RJ45 CAT6A UTP Network Outlet Metalclad Textured Sand Black
Heavy duty metalclad construction, with textured durable matt black finish.
Single shuttered CAT6A unshielded RJ45 outlet
Conforming to ANSI/TIA/EIA 568B. 2-10
Insulation resistance: less than 500 milli-ohm at 100V DC
Withstand voltage: 1000V DC, 700V AC RMS 60Hz 1 min.
Operating temperature: -10°C to 60°C
16-20 AWG wire gauges
Increased bandwidth - capable of supporting data transfer rates of up to 10Gbps over 100m at a maximum bandwidth of 500Mhz (CAT6 can only support 30-50m or 1Gbps at 100m at max. 250Mhz)
Backwards compatible with both CAT6 and CAT5e however, it is important to note that speed will be affected
Reduced crosstalk
Beyond the standard uses it also provides enhanced PoE (Power over Ethernet) capabilities that make it ideal for smart home functions, such as smart security cameras in locations where standard power outlets arent available
For best results, must be used with certified CAT6A cabling
