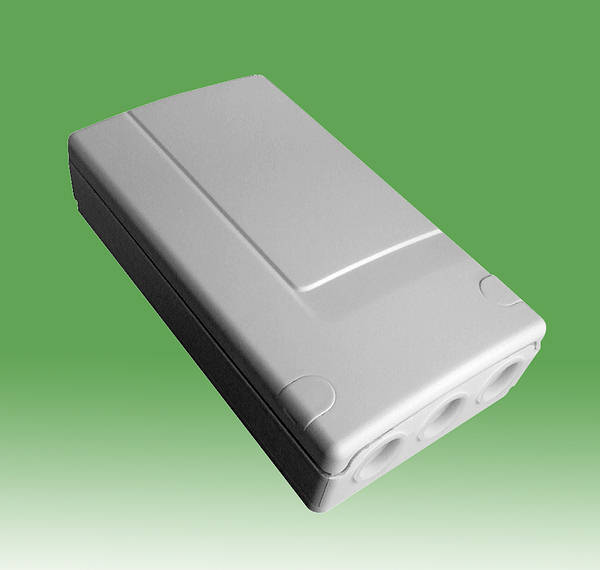

LDG01X External Receiver
Supply 230v AC
Receiver units, LDG01X & LDG02X are remote receiver/switching units inside or outside the house.
There are 2 versions 230V or 12-24V.
These can be used for switching lights or any other remote circuits Electric Gates / Garage door openers
Voltage-free dry contact - Fit Inside or outside
Modes of operation
- ON/OFF: for controlling an electrical device with activation and de- activation of the device every time the button is pressed (no activation/ deactivation time limit)
- Toggle: for controlling an electrical device with activation and de- activation of the device every time the button is pressed (no activation/ deactivation time limit)
- Timer: for controlling an electrical appliance with automatic stopping at the end of the programmed time limit of 30, 90 s, 3, 5, 15, 30 or 60 min.
- Pulse: for activating an electrical appliance for a time limit of 1 to 7 seconds
- Status feedback of the receiver relay (open /closed)
Total maximum output power:
- Incandescent lamp 1000 W
- 230 AC halogen lamp 1000 W
- 12 V ELV halogen lamp 1000 W
- Ferromagnetic transformer halogen 1000 W
- Electronic transformer halogen 1000 W
- Compact fluorescent (Low consumption bulb) 200 W
- Fluorescent tubes non compensated 500 W
- Parallel compensated fluorescent tubes prohibited
