Universal 5w to 20w LED Emergency Pack 2600mAh5055800106730LTEM26

Loading …

Specifications:

Inverter:
Length: 105mm.
Height: 45mm.
Depth: 23mm.

Working Volt:
AC85-265V.

Emergency Output:
Voltage/Current - DC 230V 0.12A~0.01A.

Battery Type:
18650 Li-Ion 11.1V 2600mAh.
20mm x 20mm x 220mm.
LEDlite
Universal 5w to 20w LED Emergency Pack
2600mAh
Emergency Lighting Power Pack
for Mains Voltage LED Lamps.

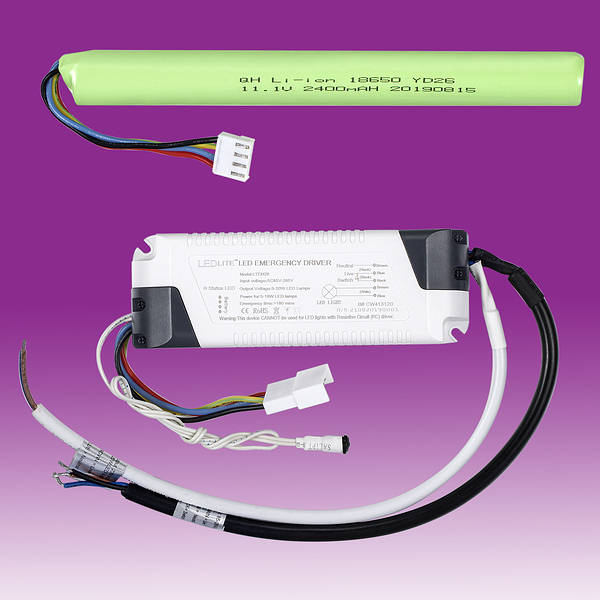

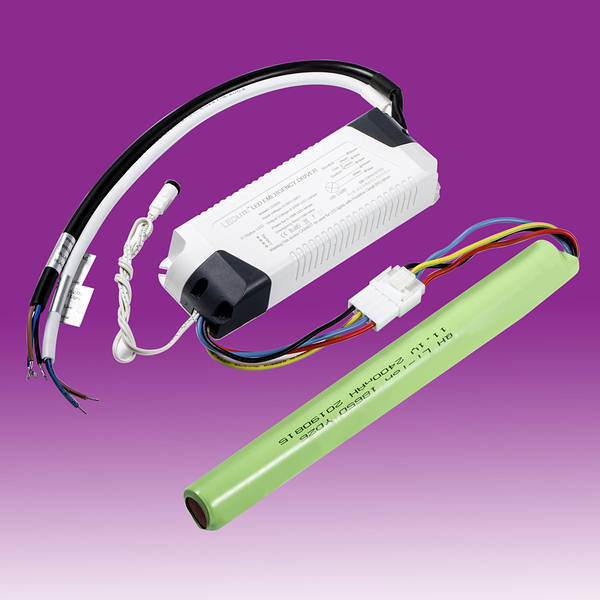

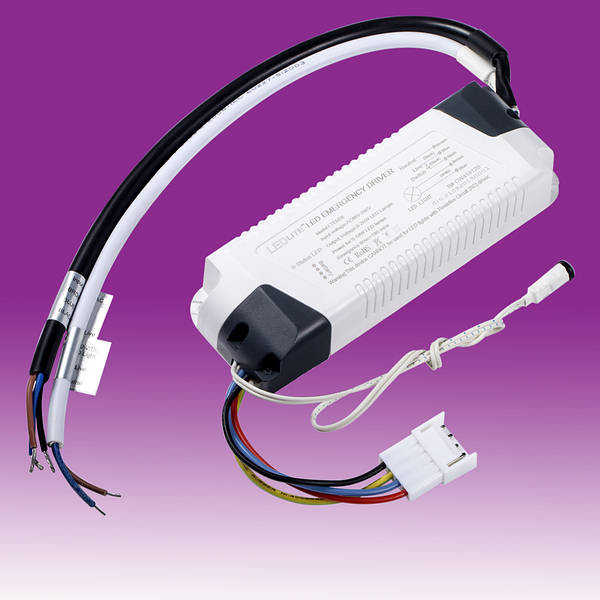

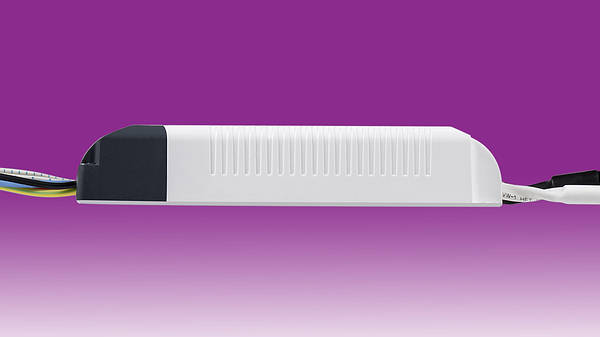

The LTEM26 emergency pack includes housing, PCB, test switch, Indicator light and Li-ion battery.

The device housing is made steel with powder coating; the battery is a 2600mAh
Li-ion battery with long lifespan; the PCB uses IC control design
in charging/discharging and power supply.

The PCB circuit has complete protection design for over-charging/discharging,
output short-circuit, open circuit or input/output reverse connection.

Operating principle:
The LTEM26 emergency pack is being charged when AC power is present.
When fully charged, the circuit will protect the battery from
over-charging and the emergency pack will enter stand-by mode.
As soon as the AC power fails the battery will supply power to the LED lights.

The LTEM26 emergency pack is suitable for all 5-20W LED lamps and fittings with Integrated Circuit driver.
(This device CANNOT be used for the LED lights with Resistive driver).
It is used to ensure LED lights work normally in case of power failure.


Emergency Time: 180 minutes.

Rated: IP30.

2 Year Warranty.
  • 30W LED emergency driver.
  • IP30 protection level.
  • Applicable to LED lamps.
  • Voltage protection: wide voltage input AC85V-265V.
  • Overload protection: timely protection when power exceeds 50% of rated power.
  • Short circuit protection and no loading protection.
  • High efficiency and low temperature extend lifespan ( > 50000 Hours).
  • Safe Voltage Output.
  • External green LED indicator
  • Compact size, convenient in installation and maintenance.

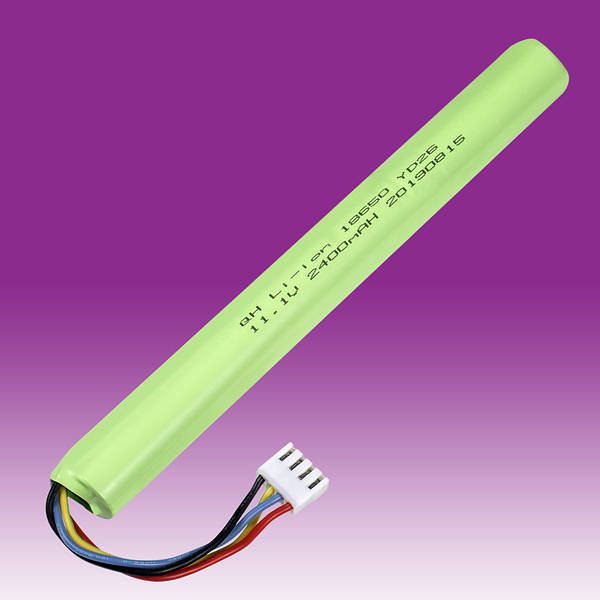

  • Battery features:
    High capacity Lithium-Ion battery with overcharge and over discharge protection.
    High temperature resistant battery.
  • 11.1V Lithium-ion 3 cell battery pack 2600mAh. Simple plug-in connection.

Technical:

LTEM26 Datasheet 2.6mb LTEM26 Instructions 600kb

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
LT EM26

Universal 5w to 20w LED Emergency Pack 2600mAh
