Premium Electronic Lighting Transformer 0w - 210w5021575960969YT210Z

Loading …

Length - 167mm.
Height - 38.5mm.
Width - 52.5mm.
TLC - Premium Transformer ( 0w - 210w )
The circuits can be loaded up to the total value of the lamps, not to the transformer rating as is usual.

Transformer performs from 0W (ie total lamp failure) to its maximum rating and every stage between.

Short-circuit protected to insure against clumsy installation. Normal service is resumed when short circuit is removed.

Thermal and Overload protection. Both of these features are fully reversible so as not to damage the transformer or any equipment on the circuit. Ultra-cool running reduces risk of product failure.

Captive screws for ease of installation in tricky areas.

Designed in conjunction with electricians for ease of fitting with particular attention paid to cable termination.

Clear and simple labelling and fitting diagram
Soft start to extend lamp life.

Fully tested and certified.

2 pairs of input terminals. 3 pairs of output terminals (load can be split or draw total load from 1 pair of terminals)

Note: - Not suitable when used in conjunction with LEDs and a dimmer
  • Input voltage 230V 10% /50Hz
  • Input current 0,93A for 210W
  • Power range 210VA: 0-210W
  • Output voltage 11,5V max. 18,2A
  • Power factor > 0,99
  • Ambient temperature 0 - 40°C
  • Insulation class II
  • Casing type EC05
  • Input terminals quantity 4
  • Output terminals quantity 6
  • Weight 225g
  • IP20 protection
Product Code
Price (ex VAT)
Price (inc VAT)

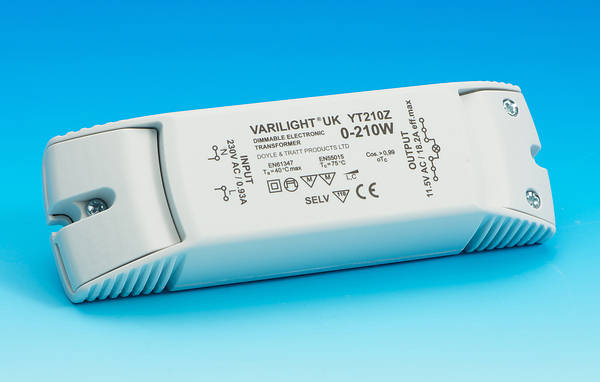

product photo
LT YT210

Premium Electronic Lighting Transformer 0w - 210w
