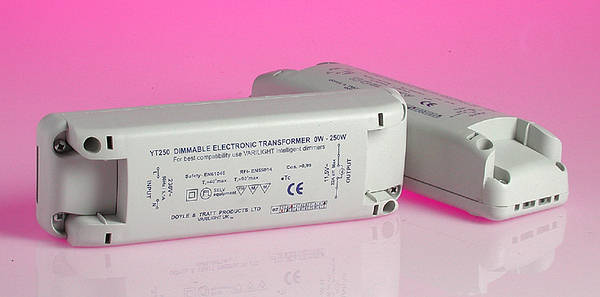

TLC - Premium Transformer ( 0w - 250w )
The circuits can be loaded up to the total value of the lamps, not to the transformer rating as is usual.
Unique internal architecture enables up to 10 x LT YT250`s to be used on one dimmable circuit (currently a maximum of 5 transformers per circuit can be used).
Transformer performs from 0W (ie total lamp failure) to its maximum rating and every stage between.
Perfect Compatibility with TLC dimmer switches.
- Short-circuit protected to insure against clumsy installation. Normal service is resumed when short circuit is removed.
- Thermal and Overload protection. Both of these features are fully reversible so as not to damage the transformer or any equipment on the circuit.
- Split the load over 3 pairs of output terminals or draw total load from 1 pair of terminals
Ultra-cool running reduces risk of product failure.
- Captive screws for ease of installation in tricky areas.
- Designed in conjunction with electricians for ease of fitting with particular attention paid to cable termination.
- Clear and simple labelling and fitting diagram
- Soft start to extend lamp life.
- Fully tested and certified.
