4 x 14w HF T5 HF Recessed Sealed Modular - IP54 c/w Emergency Pack0JAV414/T5/TPB/M3
Loading …
Cost Recovery
Based on a cost of 11p per kW
and a usage of 60 hours per week (which is low ie office use )
or a shop at 10hrs per day
or go higher for a call centre!
4 x 18w - Yearly savings per fitting
3000hrs - £8
5000hrs - £13
4 x 36w - Yearly savings per fitting
3000hrs - £16
5000hrs - £26
2 x 58w - Yearly savings per fitting
3000hrs - £12
5000hrs - £16
Extra cost of an HF fitting is recovered within one year or less
with 50 HF fittings yearly savings of £400.00+ with 4 x 18w fittings
and £800.00+ with 4 x 36w fittings
Based on a cost of 11p per kW
and a usage of 60 hours per week (which is low ie office use )
or a shop at 10hrs per day
or go higher for a call centre!
4 x 18w - Yearly savings per fitting
3000hrs - £8
5000hrs - £13
4 x 36w - Yearly savings per fitting
3000hrs - £16
5000hrs - £26
2 x 58w - Yearly savings per fitting
3000hrs - £12
5000hrs - £16
Extra cost of an HF fitting is recovered within one year or less
with 50 HF fittings yearly savings of £400.00+ with 4 x 18w fittings
and £800.00+ with 4 x 36w fittings

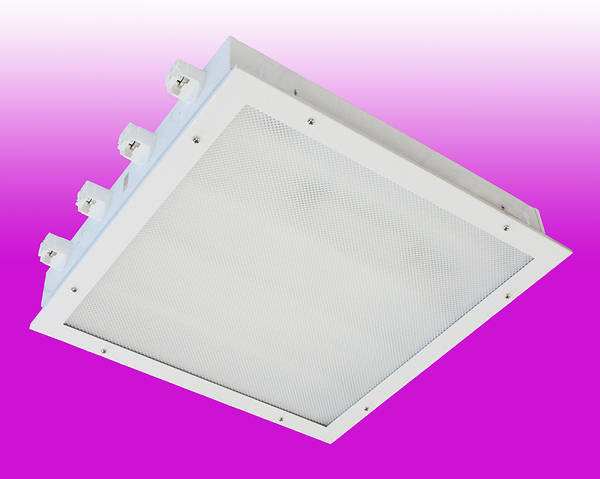

4 x 14w HF Recessed Sealed Modular - IP54
c/w Emergency Pack
c/w Emergency Pack
IP54 rated recessed sealed
modular fittings for T5 lamps.
For plasterboard ceilings as standard.
If required for use in any other ceiling type
please contact us for technical advice
-
APPLICATIONS
Medical centres
Food preparation areas
Laboratories - SPECIFICATION
T5 lamps
High-frequency control gear
For plasterboard ceilings. - CONSTRUCTION
Robust steel body
RAL9010 textured semi-gloss powder coated finish
IP54 rated to the front face of the fitting
TP(a) rated polycarbonate panel held in position and sealed with a screwed-down steel frame and gasket - Supplied excluding Tubes
- Benefits of High Frequency Fittings.
- Flicker free and silent operation.
- ‘Instant’ starting.
- Detects failed lamps, no more flashing on and off.
- Cold starting in sub-zero temperature.
- No stroboscopic effects.
- 20-30% saving in running costs.
- Features of Tri-phosphor Lamps.
- Tri-phosphor lamps drop to 96% of their original output after about 4000 hours and remain at that level compared to standard lamps which drop to 86% and then down to 74% over the rest of their life.
- Survival rate of 70% of tri-phosphor tubes after 16,000 hours, compared to 10,000 hours for standard tubes.
- Approximately 15% increase in light output over standard tubes.
| Please allow 1 - 2 working days - for delivery |
Technical:High Frequency Info - 49Kb pdf HF Benefits - 87kb pdf Line Drawing - 27Kb pdf |
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
MD DA414/M3
4 x 14w HF T5 HF Recessed Sealed Modular - IP54 c/w Emergency Pack
EA |
EA 3+ |
|---|---|
£155.00 |
£146.00 |
EA |
EA 3+ |
|---|---|
£186.00 |
£175.20 |
Accessories, Replacement Batteries and Lamps
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
AS CR64AX
Klik 6A 4 Pin Plug in Ceiling Rose
EA |
|---|
£4.50 |
EA |
|---|
£5.40 |
EM B170/44
4 Cell 4Ah NiCad Stick Replacement Battery
EA |
EA 5+ |
|---|---|
£15.35 |
£14.80 |
EA |
EA 5+ |
|---|---|
£18.42 |
£17.76 |
LA FLT14
14w White Deluxe Triphosphor Fluorescent Tube T5 - 835
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.10 |
£1.90 |
£1.75 |
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.52 |
£2.28 |
£2.10 |
LA FLT14CW
14w Cool White Deluxe Triphosphor Fluorescent Tube T5 - 840
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.10 |
£1.90 |
£1.75 |
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.52 |
£2.28 |
£2.10 |
LA FLT14DL
14w Daylight Deluxe Triphosphor Fluorescent Tube T5 - 865
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.10 |
£1.90 |
£1.75 |
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.52 |
£2.28 |
£2.10 |
LA FLT14WW
14w Warm White Deluxe Triphosphor Fluorescent Tube T5 - 830
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.20 |
£1.99 |
£1.85 |
EA |
EA 5+ |
EA 10+ |
|---|---|---|
£2.64 |
£2.39 |
£2.22 |
FH MC600
600mm x 600mm Modular Cover 60 min Fire Rated
EA |
EA 5+ |
|---|---|
£19.25 |
£18.50 |
EA |
EA 5+ |
|---|---|
£23.10 |
£22.20 |
