MCB terminal capacity, 25 mm on ratings up to and including 20A,
35 mm on all ratings 32A and above.
EACH
3+
£2.40
£2.30
EACH
3+
£2.88
£2.76
Description

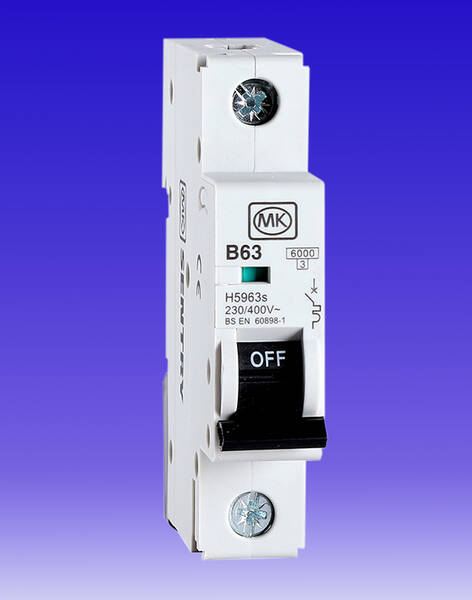

Sentry MCB ( Type B )
63 Amp MCB
General Domestic Consumer Unit use
Sentry MCB detect overcurrents due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation.
All Sentry MCBs have a short circuit breaking capacity of 6000A (M6).
The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
When the green portion of the dolly is visible, then a contact gap of 4 mm has been achieved. Sentry MCBs may therefore be used as single pole isolating switches where appropriate.
MCB terminal capacity, 25 mm on ratings up to and including 20A,
