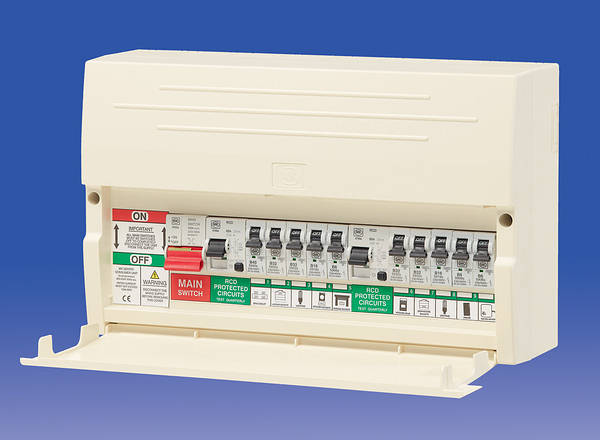

10 Way Insulated Dual Split Consumer Unit
2 x 63A RCDs c/w 10 MCB's
100A Main Switch, 2 x 63A 30mA RCD
c/w 10 MCB's (3x6A, 2x16A, 4x32A, 1x40A) Fitted
The Sentry range of Consumer Units from MK Electric
has been stylishly designed to blend in with its environment.
The curved lines and slim-line appearance mean it wont look
out of place when installed in hallways, lounges or kitchens.
Fully compatible with the 17th Edition
- BS EN 7671: 2008 and BS EN 60439-3 compliant
- Flexible neutral bar configuration for flexible installation solutions
- Floating busbar system for maximum configuration flexibility
Backed out and captive-head screws for speedy installation
- Tripod fixing holes to cope with uneven surfaces
- Ample wiring space
- Comprehensive labelling sheets
