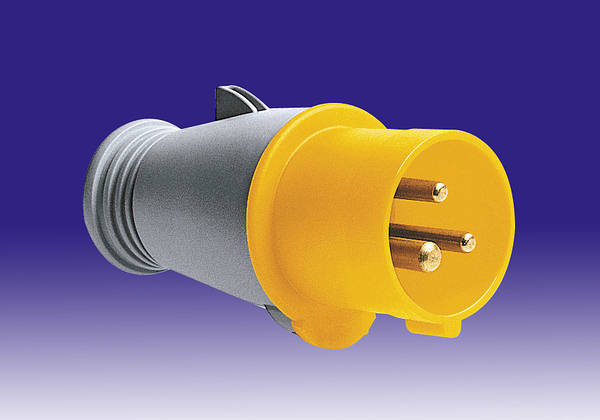

110v 32 Amp 3 Pin MK Commando Plug - Yellow - IP44
Product Code: MK K9032YEL
5017490280701
K9032YEL
Loading …
110v 32 Amp 3 Pin
MK Commando Plug - Yellow - IP44
MK Commando Plug - Yellow - IP44
Commando offers a comprehensive range of industrial plugs,
connectors, socket outlets, appliance inlets, Combi and Modular-Combi units.
The Commando range is designed to meet all relevant European and British Standards,
whilst offering an excellent choice of ingress protected ratings.
The Commando range offers remarkable impact strength by way of its PBT (Polybutylene Terephthalate)
or Nylon (Polyamide PA) insulated or aluminium housing*.
Outstanding temperature performance and good resistance to most chemicals
make it ideal for the most arduous applications.
Contact pins and sleeves are of solid brass with stainless steel springs to keep contacts free
of dirt and to ensure constant contact pressure.
10 Year Guarantee
-
Reliability
Features like the calibrated contact sleeves with stainless steel springs, brass screws in brass contacts ,and the double earthing screws – all mean that this plug or socket will perform better and longer in difficult conditions - Ergonomic design
All edges and corners are rounded to remove sharp edges. Cable protection is improved. New design offers a better and more comfortable grip for connection / disconnection - Cable protection
The unified seal and cable protector forms a convex dome that prevents the plug from fastening on objects or collecting debris when dragged
-
Easy wiring
All screws are backed out and retained. Contact carrier marked front and back for easy and correct wiring. Hinged cable clamp and twin contact earth screws - Outstanding Temperature Performance
- Successful operation guaranteed between -25 degrees centigrade and 55 degrees centigrade
- *16A and 32A IP44 plug, connector and socket outlet products have housings manufactured from PA
Technical:Full Range - 1.45Mb pdf Specification - 1.45Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
MK K9032YEL
110v 32 Amp 3 Pin MK Commando Plug - Yellow - IP44 |
