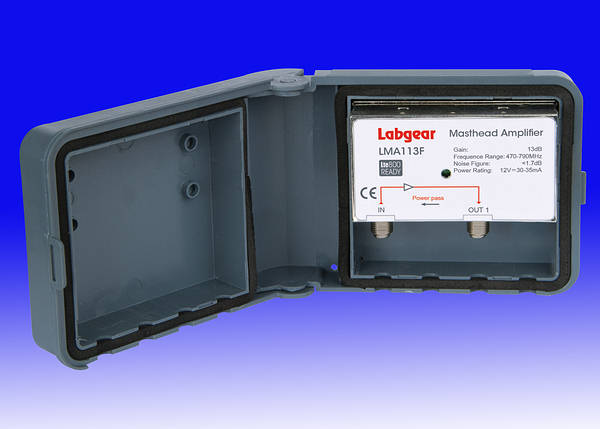

Mast Head Amp
Wide Band 16dB
Wide Band 16dB
for use in areas of poor signal strength or
When extra signal strength is required to distribute to multiple TV's or
suitable for long downlead runs and when followed by
a passive splitter to feed additional outlets
- Built in Tetra filter
- Weatherproof outer plastic housing with foam cable seal
- Fully screened, sealed die-cast modules
- F-connectors throughout: IEC60169-24
- Ideal for digital TV
- Fixing Options: Standard cable tie mast mount or flat surface fix
- Earth bonding terminals
- Operating frequency: 470-862MHz
- Inputs:1 Outputs:1
- Gain UHF ‹2dB flatness: 16dB
- Filter rejection dc. 400MHz: >25dB
- Noise figure: <2dB
- Input return loss: 9dB
- Input signal handling: 80dBµV
- Output signal handling: 96dBµV
- Output return loss: 9dB
- Power 12VDC: 25mA
- EMC Compliance: EN50083-2
- Operating temp: -10°C to +40°C
- for use with MX200 Power supply
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
|
MX 190 | Mast Head Amp Wide Band 16dB |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MX 200 | Mast Head 12v Supply Unit |
|
|
|||||||||
 |
MX SATP | Satellite Plug F Type |
|
|
