HDMI Splitter Amplifier 2 Way5050171067574HD2-SP2

Loading …

Width: 75mm
Depth: 112mm
Height: 24mm
2 Way HDMI Splitter
4K HDMI Amplifier
Supports 4K Ultra HD, 1080p and 3D
Automatic EDID management

Take the signal from an HD or 4K source and relaunches it
to 2 displays without loss of signal strength

Bi-directional IR control system allows control of the HD input device either at source or
at the display using the Labgear HDM IRK kit
Supplied with 5V DC 2A power supply

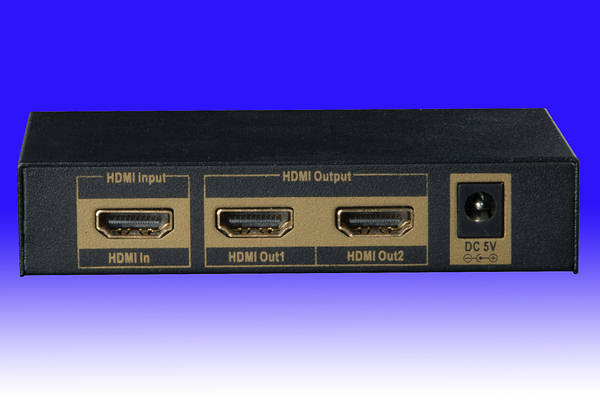

  • Input Part: 1 X HDMI (female connector)
  • Output Part: 2 X HDMI (female connector) 1 X IR channel
  • Input Lead Max Length: for 4k - 7m, for 1080p - 20m
  • Output Lead Max Length: for 4k - 7m, for 1080p - 15m
  • Bandwidth: 10.2Gbps
  • Housing: metal
  • Output resolution: 3840 X 2160@50/60, 480i~1080p@50/60, 1080p@24/50/60, VGA-UXGA
  • Operating temp: -15C - 55C/5°F - 131°F
  • Deep Colour: 36bit
  • Power Supply Input: 100-240V-50/60MHz, 0.3A max.
  • Power Supply output: DC 5V-2000mA


Data Sheet - 1.6Mb
Product Code
Price (ex VAT)
Price (inc VAT)
product photo

HDMI Splitter Amplifier 2 Way --- Price Drop ---
