4 Way HDMI Splitter5050171067567HD2-SP4

Loading …

Width: 75mm.
Depth: 112mm.
Height: 24mm.

Weight: 300g.

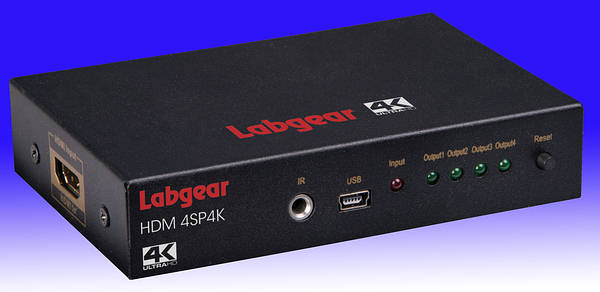

4 Way HDMI Splitter
4K HDMI Amplifier
Take the signal from an HD or 4K source
and relaunches it to 4 displays without loss of signal strength.

Supports 4K Ultra HD, 1080p and 3D.
Automatic EDID management.

Bi-directional IR control system allows control of the HD input device
either at source or at the display using the Labgear HDM IRK kit.

Supplied with 5V DC 2A power supply.
  • Input Part: 1 X HDMI (female connector)

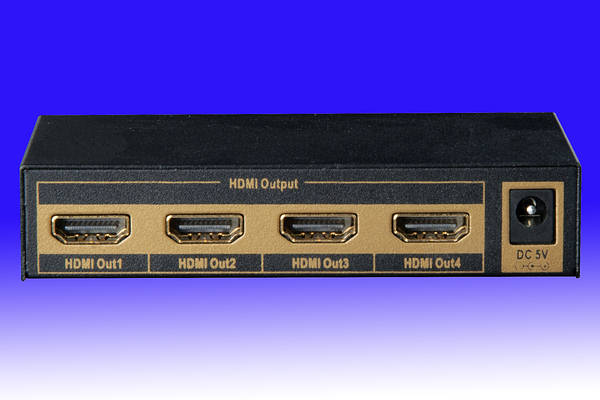

  • Output Part: 4 X HDMI (female connector) 1 X IR channel
  • Input Lead Max Length: for 4k - 7m, for 1080p - 20m
  • Output Lead Max Length: for 4k - 7m, for 1080p - 15m
  • Bandwidth: 10.2Gbps
  • Housing: metal
  • Output resolution: 3840 X 2160@50/60, 480i~1080p@50/60, 1080p@24/50/60, VGA-UXGA
  • Operating temp: -15C - 55C/5°F - 131°F
  • Deep Colour: 36bit
  • Power Supply Input: 100-240V-50/60MHz, 0.3A max.
  • Power Supply output: DC 5V-2000mA


Data Sheet - 1.6Mb
Product Code
Price (ex VAT)
Price (inc VAT)
product photo

4 Way HDMI Splitter
