8 Way Loft Distribution and Amplifier - Discontinued

Please try Aerial Distribution and Amplifier for alternative products.

8 Way Loft Distribution and Amplifier5050171030523HDU681/S

Ideal for use with Data Grid Range

Wall Fixing Points

H - 118mm
D - 55mm
W - 338mm
8 Way Loft Distribution and Amplifier
This new home distribution unit is now designed to distribute any combination of SKY™, SKY+™, FM, DAB, UHF and CCTV signals around the home.
This model now has a switch which can be set for full function with systems that don’t include a satellite receiver or for systems that do include a satellite receiver.
It has the capability to combine satellite, FM, DAB, UHF and CCTV on to a single drop cable, with the addition of the facility for SKY+™.

The return feed from the living room then distributes the RF channels around the house via the Uplink connection on the Home Distribution Units.

Each Secondary point in the house or apartment can receive any combination of 5 off air channels, FM, DAB, CCTV
and the RF 2 output from the Sky™ box with the facility to control it using an infra red remote eye.
  • 12V 45mA line powering for Masthead
  • Separate inputs for FM, DAB, UHF, CCTV, LNB1 and LNB2
  • Excellent filtering with a flat UHF response
  • Minimal insertion loss
  • 9v 15mA with short circuit protection
  • At the flick of a switch these new distribution units will now function fully with systems that don’t include a satellite receiver. As well as those that do.
  • Gains to each outlet: - 7dB

Technical:

Data Sheet - 270kb - pdf Wiring Diagram - 180kb - pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

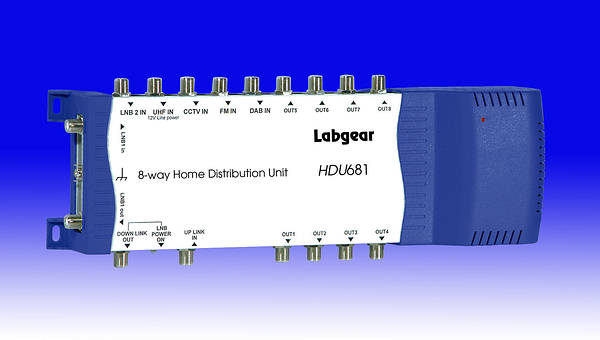

product photo

MX HDU681

8 Way Loft Distribution and Amplifier Clearance Stock

EA

£44.60

EA

£53.52

Discontinued
