4 Way DigiLink Amplifier c/w 4G Filter5050171062562LDL204R

Loading …

184 x 85 x 35mm.
4 Way Diglink Amplifier
c/w 4G Filter
These amplifiers are ideal for use in digital satellite home installations,
where the output from the receiver can be distributed to several rooms over coax cable
with the capability for full remote control of the digibox in these rooms.

The addition of DigiLink infra red extenders in the relevant rooms completes the installation.

Please note extra remote controls may be required and rooms without a Digilink installed
will receive the satellite signal but wont have the capability to control the receiver.

Can also be used to distribute TV (Freeview) signals directly from a TV aerial.

To prevent interference built in filtering removes any signals from
LTE 800 4G mobile phone transmitters picked up by the attached aerial.
  • Separate inputs for UHF 470-4790Mhz and FM/DAB 88-230MHz aerial signals
  • Built in filter to prevent interference from LTE800 4G transmitters
  • Gain per port 8dB
  • Noise figure <3.5dB
  • All ports IR enabled - 9V 15mA short circuit protected
  • Suitable for distribution of RF2 satellite signals or Freeview TV signals direct from an aerial
  • Also suitable for distribution satellite signals from I/O port when used with MRX600 converter
  • Built in switch mode 220-240V~50Hz power supply.
  • All ports IR enabled 9V 15mA short circuit protected
  • Built-in Power supply 220-240V~50Hz at <3W.
  • Operating frequency UHF 470 - 790MHz
  • Return path frequency range 5-15MHz
  • FM/DAB frequency range 88-230MHz
  • UHF/FM/DAB gain per port 13dB
  • Return path gain "-4dB"
  • Inputs 2
  • Outputs 4
  • Max output level (IMA3-60dB) 102dBuv
  • Noise figure <3.5dB
  • Return loss input/output 10dB/10dB
  • Isolation out/out 20dB
  • Connectors F-type


Installation 549kb pdf
Product Code
Price (ex VAT)
Price (inc VAT)

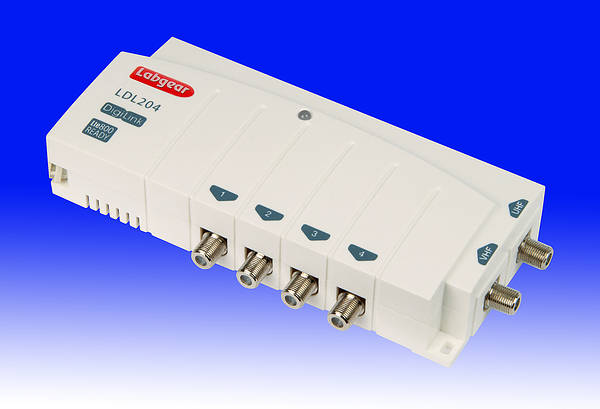

product photo

4 Way DigiLink Amplifier c/w 4G Filter
