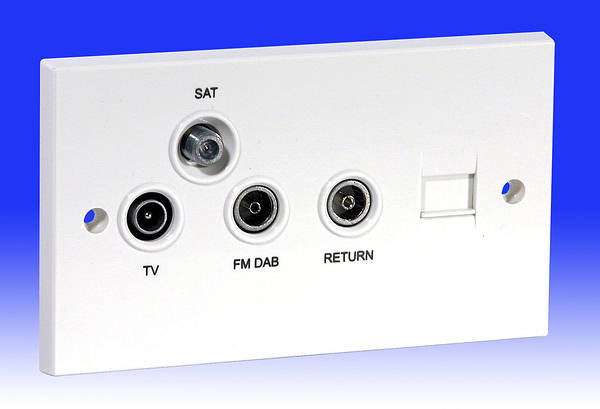

Screened Triplexed Outlet
TV/FM-DAB/SAT/Telephone
TV/FM-DAB/SAT/Telephone
Designed for Sky™ applications with low loss, minimal ingress and negligible module cross talk.
- SAT1, TV, FM / DAB return and telephone outlets
- Excellent matching and isolation
- Telephone jack
- Low insertion loss
- Screened to EN 50083-2: >65dB to 1GHz and >55dB to 2.2GHz
- Compact screened housing
- Easy cable connections and access
- For cables with 1mm conductor (PF100, H109F, QF100, etc.)
- Requires 35mm mounting box
Technical:Installation 492kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
MX PSW242T | Screened Triplexed Outlet TV/FM-DAB/SAT/Telephone |
Accessories, Boxes and Grommets
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MX SATP | Satellite Plug F Type |
|
|
|||||||||
 |
MX 260 | Male Coaxial Plug - Metal |
|
|
|||||||||
 |
WD 328PW | DeWalt Wall-Dog 32mm x 8mm Pan Head - White |
|
|
|||||||||
 |
WD 328PC | DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome |
|
|
|||||||||
 |
AP 625 | 2 Gang 35mm KO Flush Box |
|
|
|||||||||
 |
GR 20 | 20mm Open Grommets |
|
|
