Quinetic Dimmer Module c/w Knob
Product Code: QU DM
5055800108611
QUDM
Loading …
Quinetic
Dimmer Module c/w Knob
Dimmer Module c/w Knob

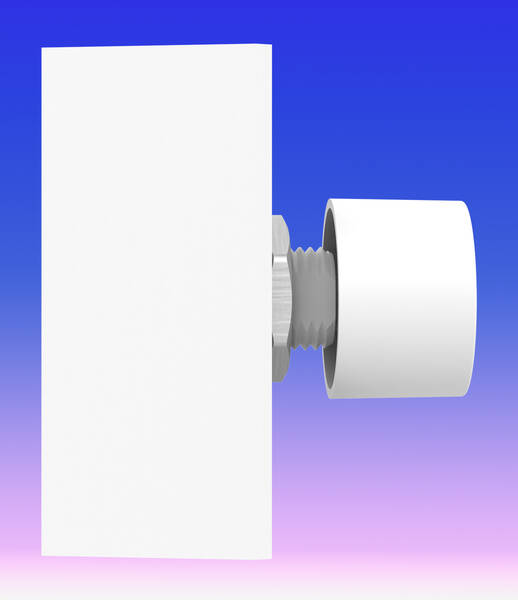

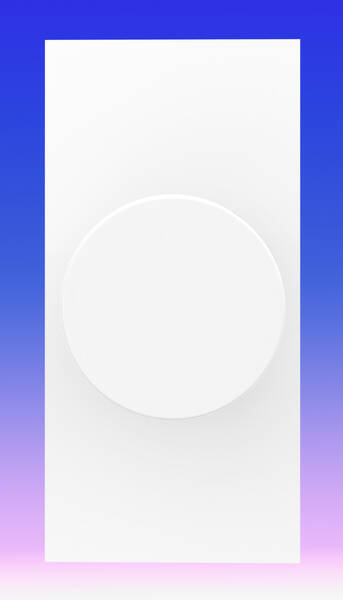

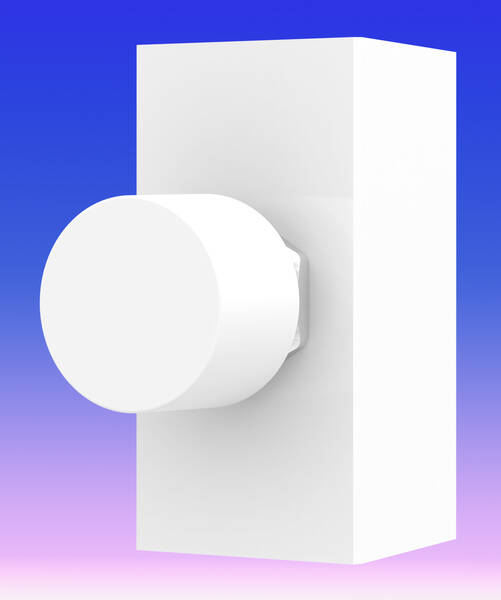

The Quinetic Wireless Dimmer Module is a push type button switch (not rotary)
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish. Simply remove the knob on the existing dimmer,
unscrew the hex nut, replace the module with the QUDM, screw the nut back on and reattach the knob.
The D-profile shaft is compatible with most dimmer knobs/plates currently on the market.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring, which has been a problem
ever since the invention of the lamp.
No wiring. No battery. Easy installation and usage.
with an interchangeable knob, compatible with most dimmers on the market, offering
high installation flexibilty.
Designed to replace an existing dimmer module with a Quinetic Switch/Dimmer,
whether it be on a standard white plate or a decorative finish. Simply remove the knob on the existing dimmer,
unscrew the hex nut, replace the module with the QUDM, screw the nut back on and reattach the knob.
The D-profile shaft is compatible with most dimmer knobs/plates currently on the market.
It can be used as a simple on/off switch when paired with a standard Quinetic receiver,
or can be fully dimmable when paired with a dimming Quinetic receiver.
It has a built-in micro energy generator - when the switch is pressed the kinetic system transforms the movement into energy.
This transmits a signal to the receiver to turn the lamp or other load on or off.
This solves the issue of having to install switch wiring, which has been a problem
ever since the invention of the lamp.
No wiring. No battery. Easy installation and usage.
-
1 Gang push button knob (not rotary) - press to turn on/off,
press & hold to dim cyclically - Communication frequency: 433MHz RF
- Control distance: 25m (indoor), 80m (outdoor)
- Control method: pairing with Quinetic Wireless Controller
-
Power source: micro energy acquisition and self generating
(no battery required) - Lifetime: >100,000 times on/off
- Work environment temperature: -20°C ~ 55°C
- 3 Year warranty
Technical:QUDM Datasheet - 2mb pdf QUDM Instructions - 1.5mb pdf |
|
