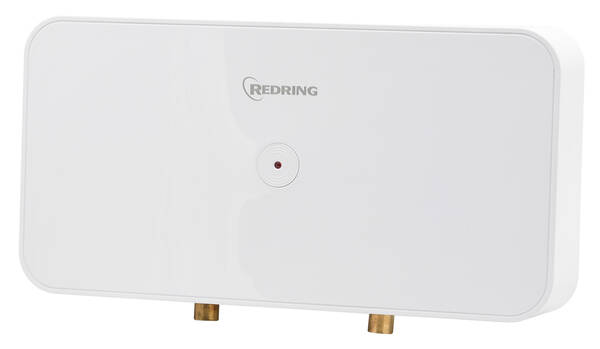

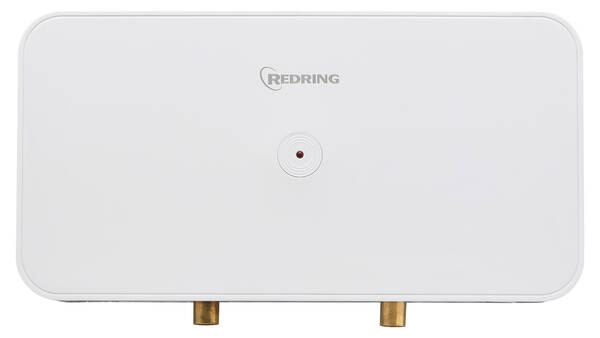

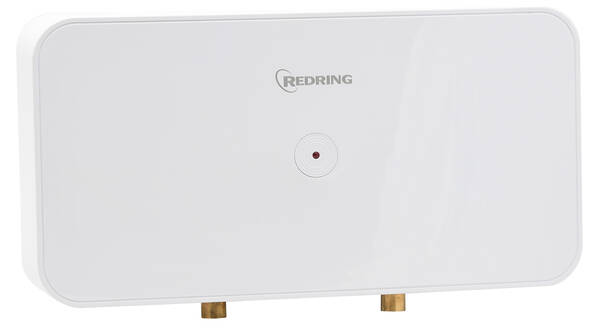

Powerstream instant inline water heater 10.8kW
Product Code: RR RPS108
5011139078421
500002298
Loading …
Height: 160mm.
Width: 307mm.
Depth: 84mm.
Redring
Powerstream instant inline water heater 10.8kW
Powerstream instant inline water heater 10.8kW
Small and compact inline instantaneous water heater ideal for hand basin supply.
Design allows for installation in 4 different orientations giving flexibility to installers.
Instantaneous heating at point of use, eliminates long inefficient pipe run heat loss to a centrally located cylinder, saving space and energy.
Suitable for two hand wash basins or a manual mixer shower and hand basin (with the RM2 accessory).
There is an option to disable one of the two heating elements internally at installation to reduced power.
A Energy efficiency rated with a manufacturers 2 year UK guarantee.
Design allows for installation in 4 different orientations giving flexibility to installers.
Instantaneous heating at point of use, eliminates long inefficient pipe run heat loss to a centrally located cylinder, saving space and energy.
Suitable for two hand wash basins or a manual mixer shower and hand basin (with the RM2 accessory).
There is an option to disable one of the two heating elements internally at installation to reduced power.
A Energy efficiency rated with a manufacturers 2 year UK guarantee.
- Power Output (kW): 10.8.
- 50% Power (kW) set at install: 5.4.
- Current Rating (Amps) @240V: 45.
- Element Resistance (Ohms): 10.6.
- Thermal Cut-out Protection: 2 stage - cyclic and manual reset.
- Energy Rating (Class): A .
- Energy Rating (%): 39.
- Consumption (kWh/A): 468.
- Load Profile: XS.
- Sound (dB): 15.
- Operating Pressure psi/(bar): 10 (0.7) - 150 (10.3).
- Minimum Flow Rate (l/min): 3.3.
- Water Connections: Ø15mm plain copper shank.
- IP Rating: IPX4.
Height: 160mm.
Width: 307mm.
Depth: 84mm.
Technical:RRRPS108 Datasheet 218kbWarranty:Redring |
|
