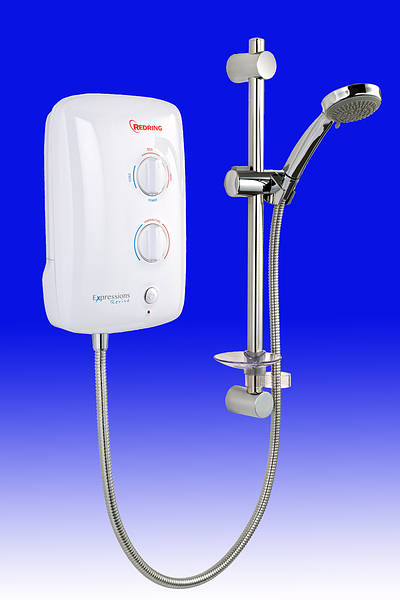

Redring Expressions Revive Plus 7.2kW White (Discontinued)

Redring Expressions Revive Plus 7.2kW White501708456504753565002

Loading …

Redring Expressions
Revive Plus 7.2kW White
Dual terminal blocks allow electrical connection from the right or left hand side

Fully interchangeable with previous generation Expressions showers

Phased shutdown
Flushes residual hot water at switch off to
ensure a safe starting temperature for the next user (Plus models only)
  • SmartFit™ 2 technology
    Improved working access and 8 cable and 6 pipe entry points to replace virtually any electric shower
  • Sleek styling
    Elevated dials and a smooth finish
  • Separate dials
    For power and temperature/flow control enables easy operation of settings
  • Push button start/stop
    Offers simple ‘set and forget’ convenience to allow users to leave the shower at their preferred temperature and flow settings
  • Inlet filter
    Can be easily changed without the need to remove the shower cover
  • All chrome FlexiKit accessories
    1.25m hose, 580mm riser rail, soap dish, 6 mode shower head and adjustable fixing brackets
  • 2 year UK warranty
    For extra peace of mind
  • Operating water pressure 1-10 bar (15-150psi)
  • Water connection – 15mm plain shank push fit or standard 1/2” BSP compression fittings
  • Twin terminal blocks for left or right hand electrical connection
  • Top, bottom side and rear pipe entry and top, bottom and rear cable entry options from the right or left hand side
  • Recommended cable sizes and fuse ratings:
    7.2kW – 6mm² 30 Amps
    8.5kW – 6-10mm² 40 Amps
    9.5kW – 10mm² 45 Amps


Important Warranty Info Installation / User Guide Product Sheet
