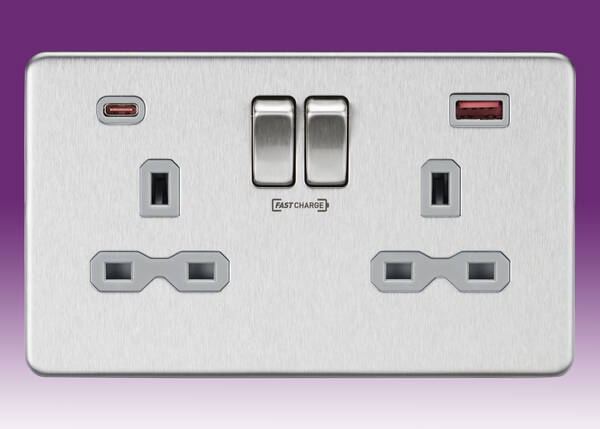

13 Amp 2 Gang DP Switched Socket - FastCharge USB A+C - Brushed Chrome/Grey New
Product Code: SF 9909BCG
5056270806878
SFR9909BCG
Loading …
Plate thickness
when fitted 4.5mm
15 year guarantee.
Knightsbridge
13 Amp 2 Gang DP Switched Socket - FastCharge USB A+C
Brushed Chrome/Grey
13 Amp 2 Gang DP Switched Socket - FastCharge USB A+C
Brushed Chrome/Grey
with an ultra slim profile design and high quality metallic switches
The Screwless design features an easy clip on cover, an internal gasket for moisture protection
and is constructed from durable, high temperature resistant thermoset material.
Perfect for Homes, Cafés, Bars, Restaurants and Hospitality Suites.
Like no other wall socket on the market, these switch voltage to achieve FASTCHARGE.
The FASTCHARGE port negotiates with compatible devices the optimum charge rate to deliver.
This can facilitate a 0-50% charge in just 30 mins (with compatible device i.e. QC3.0, PD FASTCHARGE)
- NB: Please note Apple products do not support FASTCHARGE they have their own proprietary methods, but by using certified cables you will achieve an optimum charge rate of up to 3A (it is the phone or device that decides what to draw from the charger)
- Please also note that it is the phone that decides how much power it is going to draw from the socket and once a phone gets over around 80% charge it reduces its charging sequence. FASTCHARGE mode will not kick in if your phone is at more than 80% charge
-
CHARGING
Type-A FASTCHARGE
5V DC 2A - up to 10W (standard mode)
9V DC 2A - up to 18W (FASTCHARGE mode)
12V DC 1.5A - up to 18W (FASTCHARGE mode) - Type-C FASTCHARGE
5V DC 3A - up to 15W (FASTCHARGE mode)
9V DC 2A - up to 18W (FASTCHARGE mode)
12V DC 1.5A - up to 18W (FASTCHARGE mode) - When FASTCHARGE is activated the alternative port will only output at Max. 5V DC 1A
Plate thickness
when fitted 4.5mm
15 year guarantee.

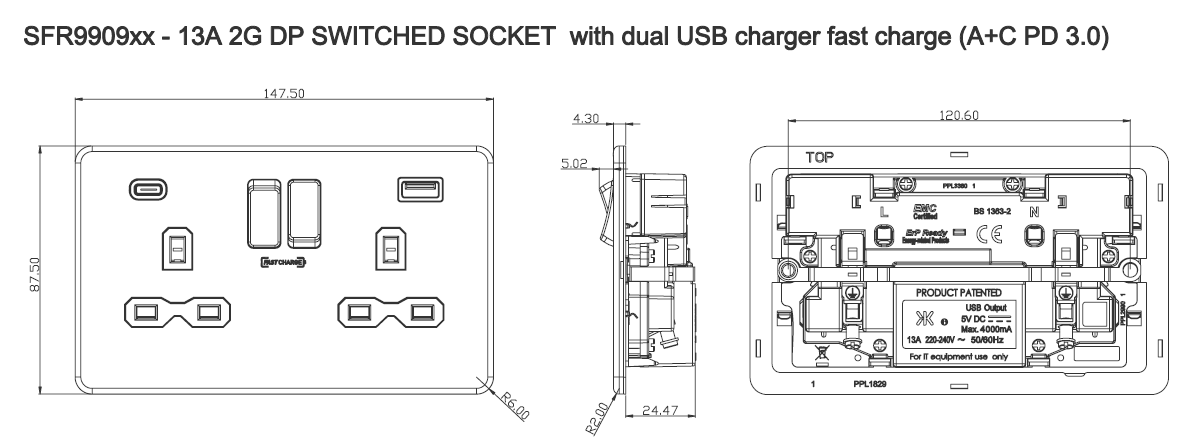

Technical:SF9909BCG Datasheet SF9909BCG Instructions SF9909BCG Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SF 9909BCG
13 Amp 2 Gang DP Switched Socket - FastCharge USB A+C - Brushed Chrome/Grey New |
