12v-24v RGB LED Tape Repeater 3 x 10A
Product Code: SK 153774
5015972158289
153.774UK
Loading …
12v-24v RGB LED Tape Repeater
3 x 10A
3 x 10A

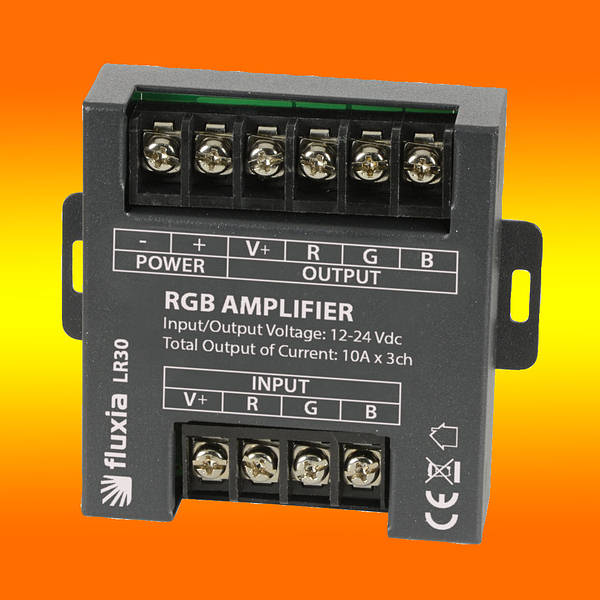

RGB LED tape amplifier 3 x 10A
Output up to 10A per channel
12V or 24V operation
RGB repeater/amplifier for 12V or 24V LED tape installation with up to 10A output capacity per colour.
Designed to enable extended runs of RGB tape from a single controller
The SK153744 is a signal repeater designed to allow extended runs of 12V or 24V RGB LED tape and strip.
Any RGB LED tape controller has a limited amount of current capacity, which means that it can only control a limited length of LED tape.
The SK153744 acts as a signal repeater or amplifier so that further lengths of tape can be added to the controlled “incoming” length of tape and all colours will be repeated across both tapes.
Output up to 10A per channel
12V or 24V operation
RGB repeater/amplifier for 12V or 24V LED tape installation with up to 10A output capacity per colour.
Designed to enable extended runs of RGB tape from a single controller
The SK153744 is a signal repeater designed to allow extended runs of 12V or 24V RGB LED tape and strip.
Any RGB LED tape controller has a limited amount of current capacity, which means that it can only control a limited length of LED tape.
The SK153744 acts as a signal repeater or amplifier so that further lengths of tape can be added to the controlled “incoming” length of tape and all colours will be repeated across both tapes.
- Power supply 12-24Vdc
- Current consumption 30A max.
- Input Blue, Green, Red, V+
- Output Blue, Green, Red, V+
- Connections Screw terminal
- Output voltage 12Vdc or 24Vdc from power supply
- Output current 3 x 10A max.
- Dimensions 91 x 82 x 25mm
Technical:Instructions - 430kb - pdf |
|
