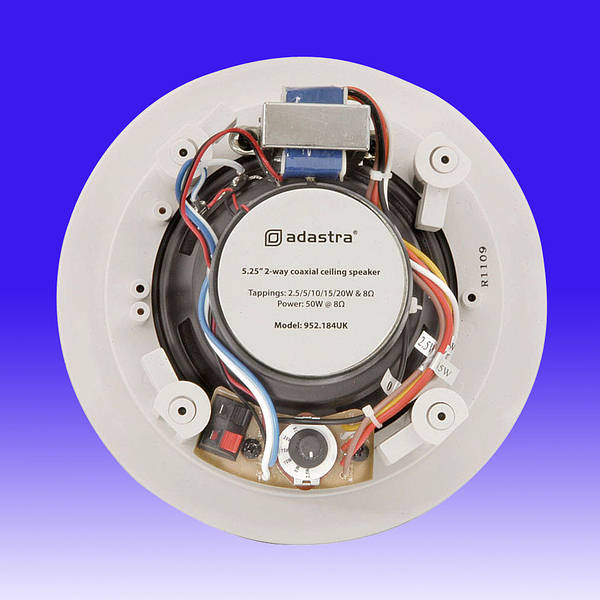

Ceiling Speaker 2 Way Quick Fit 5.25 inch - White5015972053713952.184UK

Ceiling Speaker 2 Way Quick Fit
5.25 inch - White
CC SERIES 2-WAY CEILING SPEAKERS
2-way quick fit ceiling speakers with PP mica bass driver
and directional dome tweeter giving an excellent frequency response,
all housed in a white polymer frame with metal grille.

Rotary selector switch for 100V line tapping's or 8 ohms
Specially designed locking block for fixing to ceiling tiles 1-20mm in thickness
Spring loaded terminals for easy connection
Dispersion angle 160 deg
  • Ceiling Speaker with control 5.25
  • Woofer - 133mmØ (5.25")
  • Tweeter - 38mmØ (1.5")
  • Frequency response - 85Hz - 20kHz
  • Power max. : 8 Ohms - 80W
  • Power rms : 8 Ohms - 40W
  • Power rms : 100V line - 20W
  • Cutout - 165mmØ
  • Mounting depth - 84mm
  • SPL @ 1W/1m - 84dB (±2dB)
  • Tappings - 2.5, 5, 10, 15, 20W & 8 ohms
  • Dimensions - 88 x 202mmØ
  • Weight - 1kg

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

SK SP184

Ceiling Speaker 2 Way Quick Fit 5.25 inch - White

EA

£15.50

EA

£18.60
