Height: 160mm.
Width: 80mm.
Depth: 50mm.

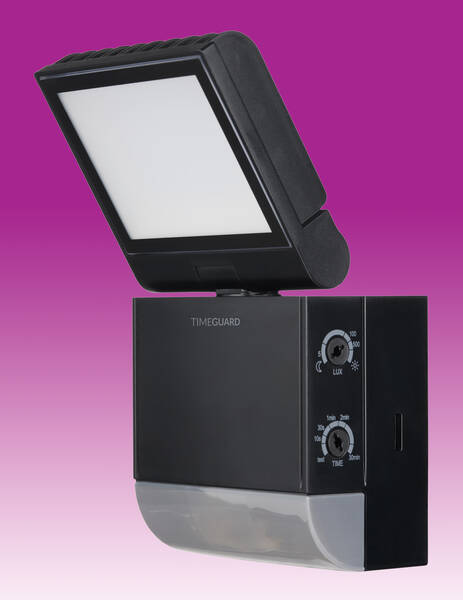

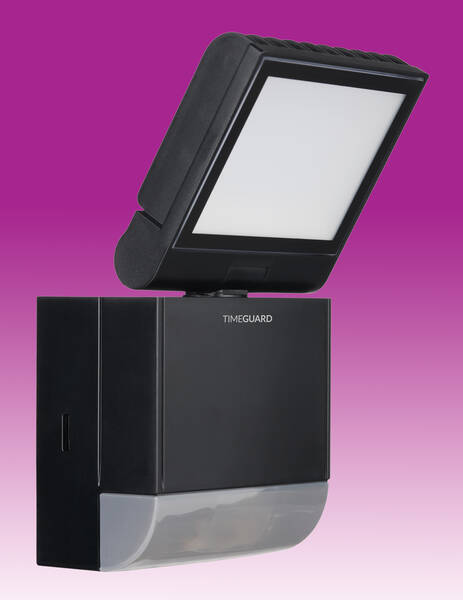

10w Evo LED Floodlight
c/w PIR Black
Timeguard have upgraded the popular LED100/200 series of LED Energy Saving PIR Floodlights with even more benefits and features.

We have taken on board customer feedback in the redesign to include a discreet 180° PIR detector with a 10m detection range and a slave terminal for control of up to 100W extra LED lighting.

A maximum of 4 floodlights can now be wired in parallel to enable any detector to turn ON all lights connected.

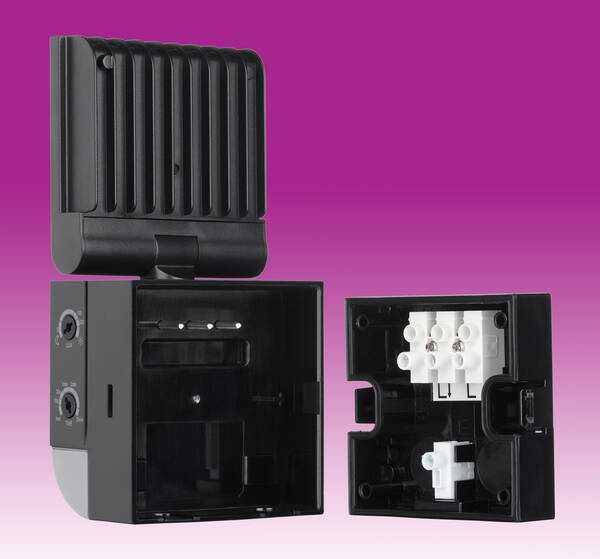

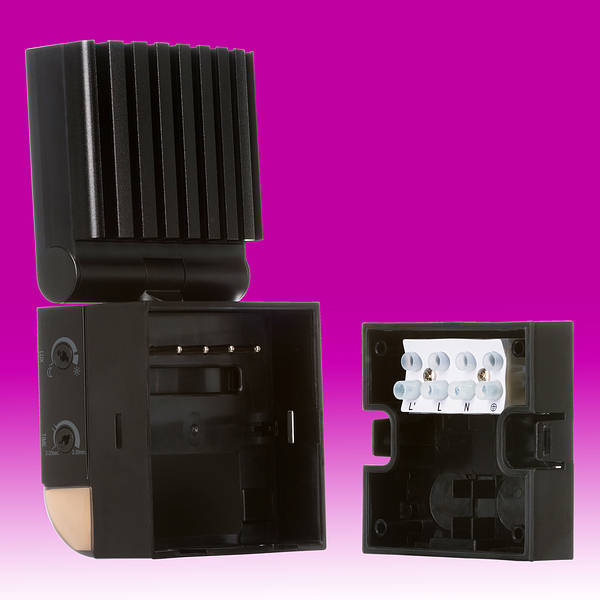

With a compact design, greater lumen output and of course our Fast-Fix pin connection for quick installation, the new LED100/200E range is a quality choice for new and existing installations.
  • 1x 10W Powerful LED compact PIR floodlight.
  • 1x 840lm lumens bright white light.
  • Pan and tilt light aiming adjustment.
  • Operating temperature -20°C to + 45°C.
  • Colour temperature 4000k.
  • Discreet 180° PIR detection with 10m detection area.

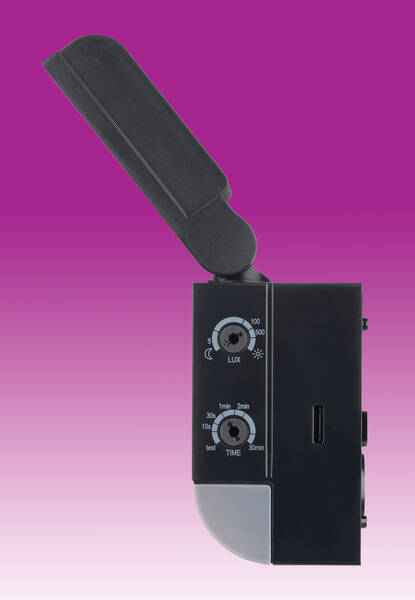

  • Adjustable time setting 2 seconds to 30 minutes.
  • Adjustable 2 – 200 LUX setting.
  • Beam angle 90 x 90.
  • IP55 weatherproof rating.
  • Manual override.
  • Parallel switching facility – a maximum of 4x LED100E/LED200E floodlights can be wired in parallel to enable any detector to turn ON all the lights connected.
  • Operating Voltage 230V AC – 50Hz
  • Lamp Type 10W LED
  • LED Brightness (Lumens) 840
  • Weatherproof Rating IP55
  • Detection Range (Max) Metres 10
  • Angle of Detection 180°
  • Colour Temperature 4000k
  • Light ON Time after Last Detection (Adjustable)2 Seconds (Min) to 30 Minutes (Max)
  • Adjustable Light Level Control2 to 200 LUX
  • EC Directives Conforms to Latest Directives.
  • Slave terminal available for additional external lighting loads; LED max 100W, halogen max 300W, and fluorescent max 200W.
