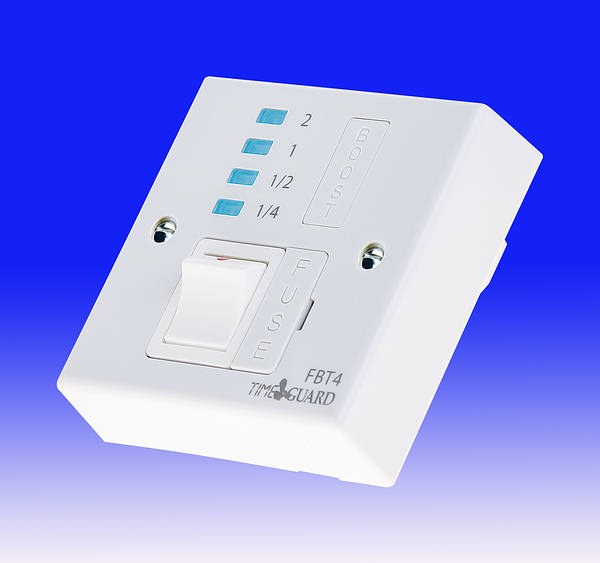

2 Hour Electronic Boost Timer & Fused Spur
Product Code: SM FBT4
5012483012581
FBT4
Loading …
Width: 85mm.
Height: 85mm.
Depth: 31mm.
Timeguard
2 Hour Electronic Boost Timer & Fused Spur
2 Hour Electronic Boost Timer & Fused Spur
protected by a BS1362 fuse switch. Automatic timed countdown
selections to a fail safe OFF using simple push button programming
with clear LED output status. Simply replace existing single gang
connection units or fixed appliance outlets.
Up to 4 ON times can be selected: 1/4hr, 1/2hr, 1 and 2 hours.
Automatic timer countdown selection to fail safe OFF.
Easy push button selection with clear LED output status.
Replaces existing single gang connection unit or fixed appliance outlets.
Provides timed output protected by a BS1362 fuse switch.
Ideal for immersion and room heaters automatically switching off at end of time period set.
Fits a standard flush or surface mount BS wall box min. 25mm deep.
Typical applications such as immersion heaters, room heaters, heated
mirrors, towel rails and selected lighting applications.
3 year guarantee.
- Timer Mode: Boost
- Setting Type: Digital
- Contact Type: Normally open
- Operating Temperature: 0 to 40ºC
- Wall Box: Minimum depth 25mm
- EC Directives: Conforms to Latest Directives
- Not suitable for discharge lighting.
- Operating Voltage: 230V AC
- Switch Rating 230V AC:
13A resistive,
5A inductive,
1000W incandescent,
1000W halogen,
500W fluorescent,
100W compact fluorescent.
Width: 85mm.
Height: 85mm.
Depth: 31mm.
Technical:TRTO49 Instructions 173kb pdf |
|
