4 Hour Electronic Boost Timer & Fused Spur5012483015179FBT4N

Loading …

Dimensions:
Width: 85mm.
Height: 85mm.
Depth:31mm.
TimeGuard

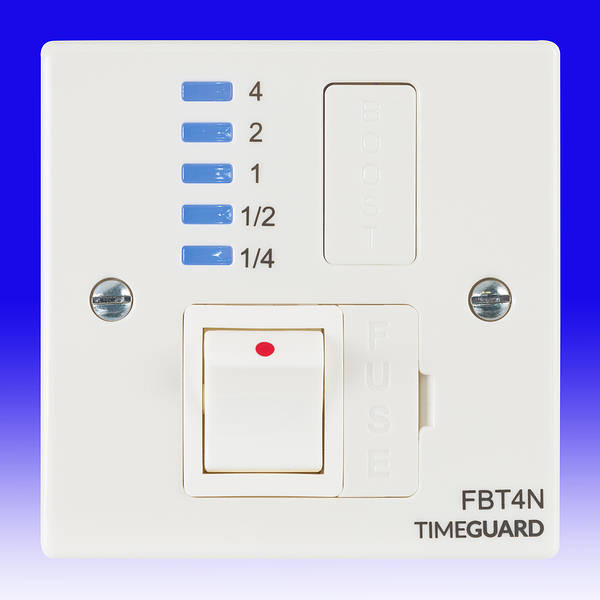

4 Hour Electronic Boost Timer & Fused Spur
BoostMaster Fused Spur Countdown Switches now added to the
range providing timed output protected by a BS1362 fuse switch.

Automatic timed countdown selections using simple
push button programming with clear LED output status.

Simply replace existing single gang connection units or fixed appliance outlets.

Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading.

Ideal for immersion heaters, room heaters, towel rails and lighting.

Replaces existing single gang connection unit
or fixed appliance outlets. box min. 25mm deep.

Up to 5 on times can be selected: ¼ hour, ½ hour, 1, 2 and 4 hours.
  • Setting Type - Digital.
  • Contact Type - Normally open.
  • Operating Voltage - 230V AC.
  • Switch Rating 230V AC 13A (3kW) resistive, 1000W Filament lighting, 500W Fluorescent lighting 200W LED lighting, 100W CFL lighting.
  • Easy push button selection with clear LED output status.
  • Provides timed output protected by a BS1362 fuse switch.
  • Timer Mode - Boost.
  • Operating Temperature: 0 to 45ºC.
  • Wall Box - Minimum depth 25mm.
  • EC Directives - Conforms to Latest Directives.
  • Fits a standard flush or surface mount BS wall box min. 25mm deep.
  • Warranty – 3 Years.

Technical:

SMFBT4N Instructions 400kb

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
SM FBT4N

4 Hour Electronic Boost Timer & Fused Spur
