20A 3 Pole AC Rotary Isolator Insulated Weatherproof - IP66
Product Code: SM IS3N-20ACG
5016211474269
IS3N-20ACGY
Loading …
Height: 190mm
Width: 95mm
Depth (inc. switch): 110mm
Weathersafe

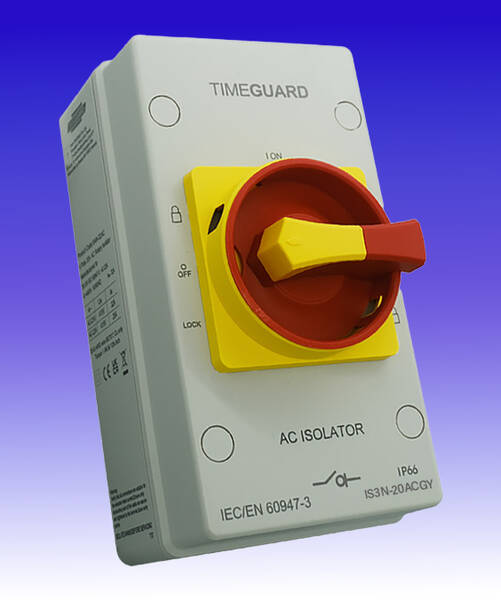

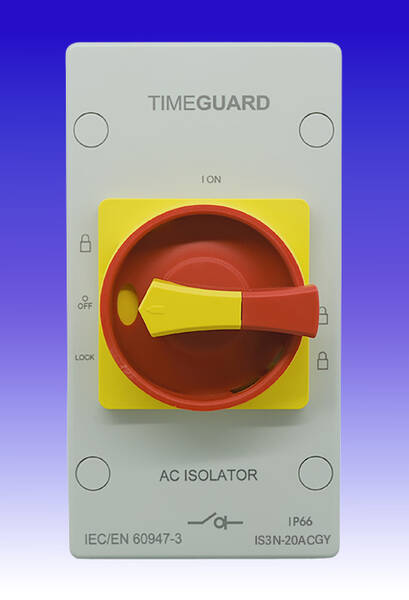

20A 3 Pole AC Rotary Isolator Insulated Weatherproof - IP66
20A 3 Pole AC Rotary Isolator Insulated Weatherproof - IP66
AC isolators deliver a reliable and cost-effective solution for switching AC voltages. The thermoplastic construction and tamperproof, lockable switch make them an ideal choice for commercial or industrial applications alike.
- Large enclosure for easy wiring
- Tough thermoplastic construction
- Multiple M25 cable entry threaded knockouts
- Tamperproof, lockable switch
- Interlocked front cover can only be removed from the OFF position
- Contact type: Normally Open
- On load switch disconnectors
- Effortlessly remove the switch from the DIN rail assembly for an easy installation
- Rising clamp terminals with 16mm² max. cable support
- IP66 rating for total protection against dust and high-pressure jets of water from any direction
- 3 year guarantee
Height: 190mm
Width: 95mm
Depth (inc. switch): 110mm
Technical:SMIS Isolator Datasheet - 310kb pdf SMIS Isolator Instructions - 275kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM IS3N-20ACG
20A 3 Pole AC Rotary Isolator Insulated Weatherproof - IP66 |
