20A TP&N Rotary Isolator Insulated Weatherproof - IP65
Product Code: SM IS4N20
5012483013069
IS4N-20
Loading …
Height: 100mm
Width: 82mm
Depth: 98mm
Weathersafe

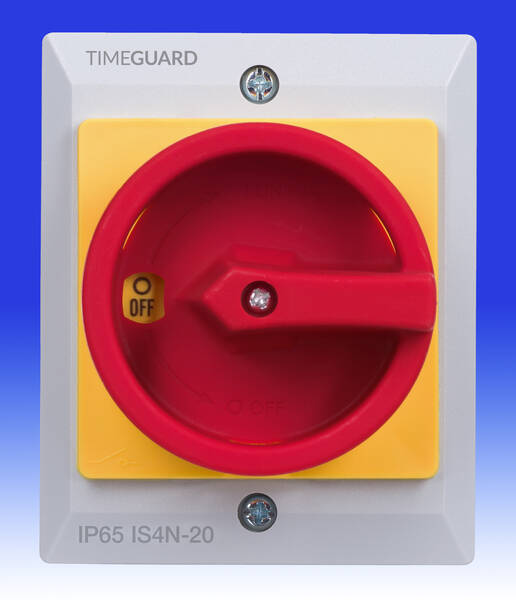

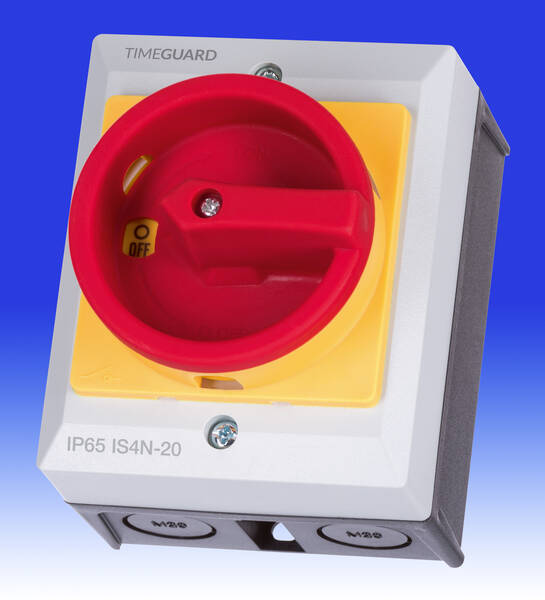

20 Amp TP&N Rotary Isolator Insulated Weatherproof - IP65
20 Amp TP&N Rotary Isolator Insulated Weatherproof - IP65
durable thermoplastic for outdoor switching protection.
Designed with safety in mind, the interlocked front covers can only be removed when in OFF position.
Lockable switch prevents tampering.
- 4 Pole 20A switch
- Contact type: Normally Open
- Solid Neutral
- On load switch disconnectors
- Switch can be removed from DIN rail assembly
allowing quick and easy first fix - Interlocked front cover can only be removed
when in OFF position
- Lockable switch prevents tampering
- Weatherproof rating: IP65
- Operating voltage: up to 415V AC
- Operating temperature: 0º to 40º C
- Tough, durable thermoplastic construction
- Cable entry knockouts on enclosure
- Conforms to BS-EN 60947-3
Height: 100mm
Width: 82mm
Depth: 98mm
Technical:SMIS4N20 Datasheet - 750kb pdf Instructions - 1.23mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM IS4N20
20A TP&N Rotary Isolator Insulated Weatherproof - IP65 |
