25A 4 Pole DC Rotary Isolator Insulated Weatherproof - IP65
Product Code: SM IS4N-25DC
5012483016114
IS4N-25DC
Loading …
Height: 180mm
Width: 100mm
Depth (inc. switch): 117mm
Weathersafe

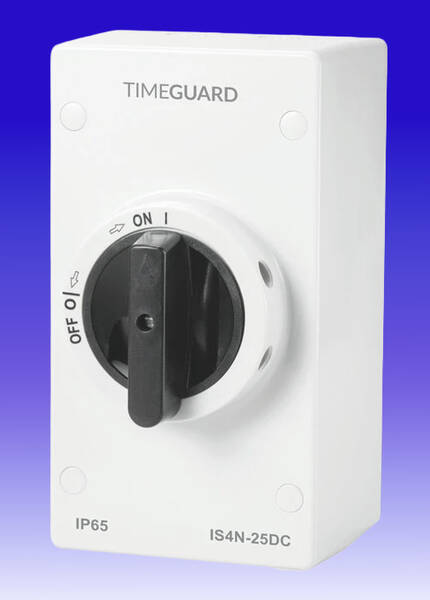

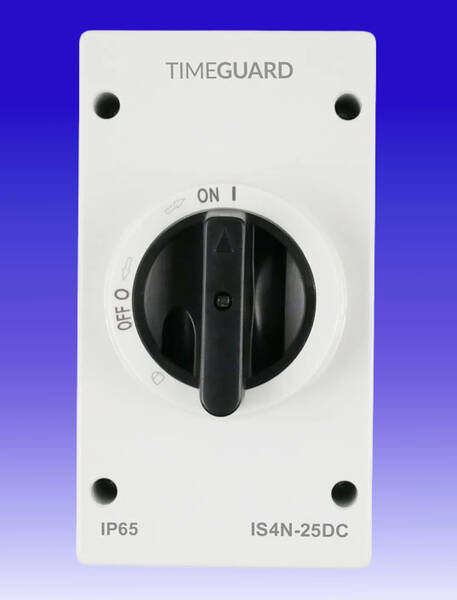

25A 4 Pole DC Rotary Isolator Insulated Weatherproof - IP65
25A 4 Pole DC Rotary Isolator Insulated Weatherproof - IP65
DC Isolators provide a safe, reliable and cost-effective way to switch and maintain DC voltage circuits.
- Large enclosure for easy wiring
- Tough thermoplastic construction
- On load switch disconnectors
- Interlocked front cover can only be removed from the OFF position
- Tamperproof, lockable switch
- Multiple M20 cable entry knockouts on enclosure
- Contact type: Normally Open
- Class II (double insulated)
- Effortlessly remove the switch from the housing assembly for an easy installation
- Guaranteed arc suppression time of under 5mS
- Rising clamp terminals with 16mm² max. cable support
- IP65 rated
- Manufactured to BS EN IEC 60947-3
- Complies with DC-PV2, DC-PV1 PV utilisation categories
- 3 year guarantee
Height: 180mm
Width: 100mm
Depth (inc. switch): 117mm
Technical:Datasheet - 220kb pdf Instructions - 4.4mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM IS4N-25DC
25A 4 Pole DC Rotary Isolator Insulated Weatherproof - IP65 |
