Timeguard

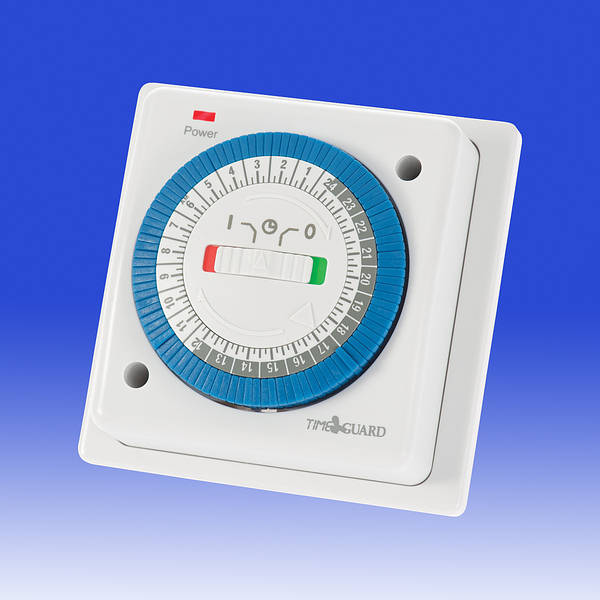

24 Hour Hour Compact General Purpose Timeswitch
Flush or Surface
c/w Voltage Free Contacts
24 Hour Hour Compact General Purpose Timeswitch
Flush or Surface
c/w Voltage Free Contacts
- 16(8)A load rating.
- 96 quick-set segments for up to 48 ON/48 OFF programmes.
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
- Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
- Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl’s). Not suitable for discharge lighting.
- Switches ON and OFF at preset times.
- Easy to use captive segment dial.
- Permanent ON/OFF control.
- Fits a standard flush - 32mm deep recomended
or GU9125 surface mount box.
- Voltage free contacts.
- Specification
- Timer Mode: 24 Hour
- Setting Type: Segment
- Operating Voltage: 230V AC
- Switch Rating 230V AC
16A Resistive (3.68kW),
8A Inductive - Operating Temperature: -10 to 50ºC
- Cable Connection: 1.5 – 2.5mm2 Flexible Cable
- Conforms to Directives: 73/23/EEC, 89/336/EEC
- Dimensions: Width 74mm, Height 115mm, Depth 50mm
Technical:T02 - Instructions - 355kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM NTT02 | 24 Hour GP / Immersion Heater Timeswitch - Voltage Free Contacts |
|
|
Accessories, Boxes and Grommets
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WD 328PW | DeWalt Wall-Dog 32mm x 8mm Pan Head - White |
|
|
|||||||||
 |
WD 328PC | DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome |
|
|
|||||||||
 |
AP 655 | 1 Gang 25mm KO Flush Box |
|
|
|||||||||
 |
AP 615 | 1 Gang 35mm KO Flush Box |
|
|
|||||||||
 |
GR 20 | 20mm Open Grommets |
|
|
|||||||||
 |
GU 9125 | 1 Gang 25mm Surface Box - White |
|
|
|||||||||
 |
MT MDLB1 | 1 Gang 35mm Dry Lining / Plasterboard Box |
|
|
|||||||||
 |
FB 4135 | 1 Gang 35mm Fire & Acoustic Metal Dry Lining Plasterboard Box |
|
|
