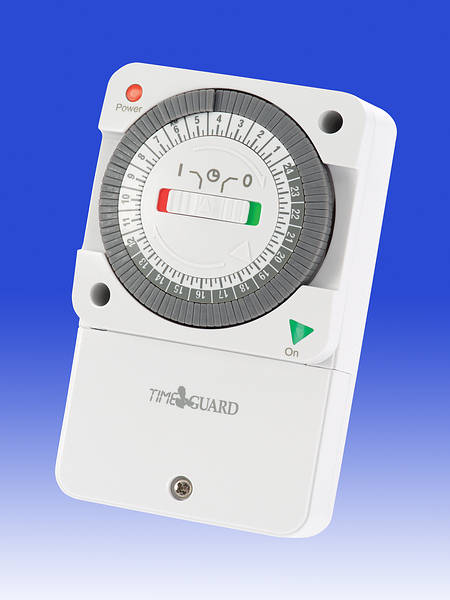

24 Hour Slimline GP / Immersion Heater Timeswitch - Voltage Free Contacts
Product Code: SM NTT05
5012483012338
NTT05
Loading …
Timeguard
24 Hour Slimline General Purpose Timeswitch
c/w Voltage free contacts
24 Hour Slimline General Purpose Timeswitch
c/w Voltage free contacts
- 16(8)A load rating.
- 96 quick-set segments for up to 48 ON/48 OFF programmes.
- Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (CFL’s). Not suitable for discharge lighting.
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
- Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
- Switches ON and OFF at preset times.
- Easy to use captive segment dial.
- Permanent ON/OFF control.
- Voltage free contacts.
- Specification
- Timer Mode: 24 Hour
- Setting Type: Segment
- Operating Voltage: 230V AC
- Switch Rating 230V AC
16A Resistive (3.68kW), Inductive 8A
LED rating: 100W - Operating Temperature: -10 to 50ºC
- Cable Connection: 1.5 – 2.5mm2 Flexible Cable
- Conforms to Directives: 73/23/EEC, 89/336/EEC
Technical:T05 - Instructions - 375kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM NTT05
24 Hour Slimline GP / Immersion Heater Timeswitch - Voltage Free Contacts |
