WiFi Controlled 16A 7 Day Programmable Timeswitch5012483014493NTTWIFI

Timeguard
WiFi Controlled 16A 7 Day Programmable Timeswitch

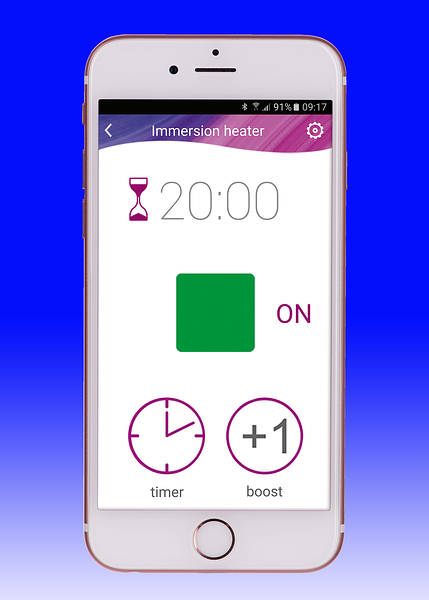

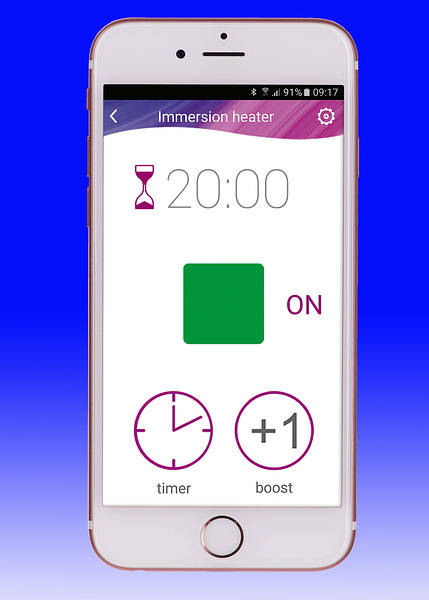

Ideal for immersion heater control and lighting applications. Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are. Total 16A rated control with confirmation of settings and switching status of the connected appliance via the on-screen app.

App Features:
Available for Android and iOS only
Works with Wi-Fi and 4G.
Supports multiple devices and multiple users.

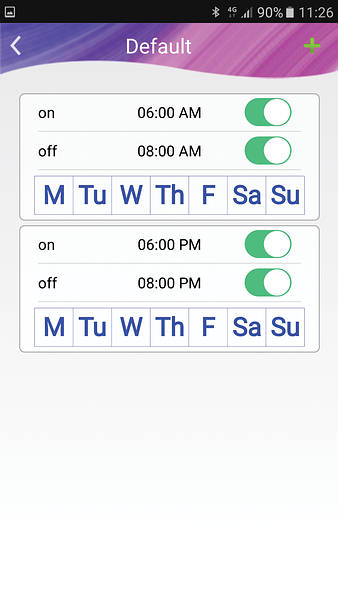

Schedule times over a week with up to 6 ON/OFF programmes per day with weekly repeats.
4 programming modes available – Auto Timed, ON, OFF and holiday mode.
Optional 1 and 2 hour boost.
Automatic summer/winter changeover.
Full On/Off status with colour coded display.
  • Operating voltage 230V 50Hz.
  • 16 Resistive rating (3.68kW) Immersion heaters. 1000W Incandescent/Halogen, 500W Fluorescent, 100W LED & CFL lighting.
  • Manual override.
  • Operating temperature 0 – 40°C.
  • Anti-Tamper with optional lockable transparent cover.
  • Timer Mode - Wi-Fi Controlled Fused Spur
  • Setting Type - Wi-Fi and 4G.
  • App Availability Android and iOS
  • App Supports - Multiple Devices and Users
  • Operating Voltage - 230V AC
  • Switch Rating - 16A Resistive (3.68kW)
  • Controls LED Lighting - 100W (max.)
  • Operating Temperature - 0 to 40ºC
  • EC Directives - Conforms to Latest Directives
  • Dimensions (mm) - Width 74, Height 120, Depth 42
  • Guarantee - 3 Years

Technical:

NTTWIFI Instructions 610kb pdf

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

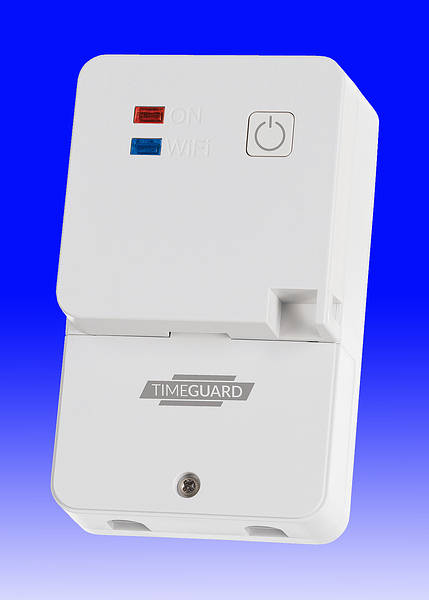

product photo
SM NTTWIFI

WiFi Controlled 16A 7 Day Programmable Timeswitch
