Absence Detector - Flush Mount - 2 Channel Special Offer
Product Code: SM PDFM362AB
5012483015575
PDFM362AB
Loading …
Dimensions (Dia x D):
105mmØ x 67mm
PIR Ceiling Projection: 23.5mm
Absence Detection
Upon entering the room the person switches on the light as normal, but on leaving the detector switches off the lighting automatically. Lights can also be switched off manually.
Presence Detection
Detectors will switch on lighting automatically when a person enters the room, and switches off lighting automatically when no movement is detected.
105mmØ x 67mm
PIR Ceiling Projection: 23.5mm
Absence Detection
Upon entering the room the person switches on the light as normal, but on leaving the detector switches off the lighting automatically. Lights can also be switched off manually.
Presence Detection
Detectors will switch on lighting automatically when a person enters the room, and switches off lighting automatically when no movement is detected.
Timeguard

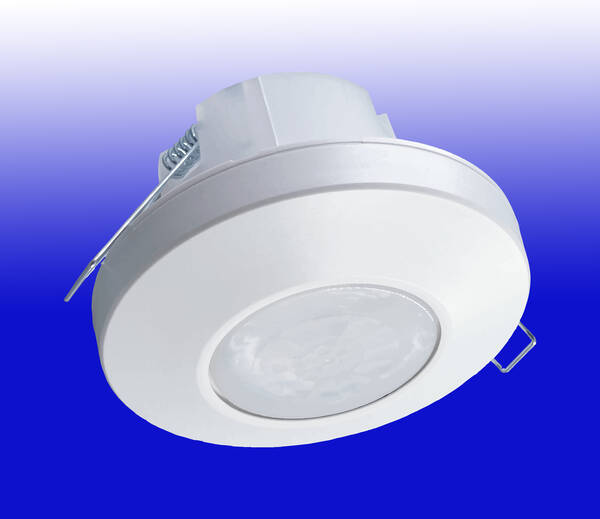

Absence Detector - Flush Mount - 2 Channel
Absence Detector - Flush Mount - 2 Channel
Modes: Absence / Presence
CE Compliant
EC Directives: Conforms to the latest directives
A IR10AB remote control is required to set up the sensor in absence detection mode.
The sensor can also be used as a presence detector (remote control not required when using the detector in presence mode).
Optional sensitivity, time on and light level activation adjustments can be made using the remote control. Light level adjustment can be used if you are daylight harvesting and do not wish the sensor to become operational until the room is sufficiently dark enough to warrant the lights coming on.
CE Compliant
EC Directives: Conforms to the latest directives
A IR10AB remote control is required to set up the sensor in absence detection mode.
The sensor can also be used as a presence detector (remote control not required when using the detector in presence mode).
Optional sensitivity, time on and light level activation adjustments can be made using the remote control. Light level adjustment can be used if you are daylight harvesting and do not wish the sensor to become operational until the room is sufficiently dark enough to warrant the lights coming on.
- PIR Detection Range: up to 8m at a 2.5m mounting height
- Detection Angle: 360°
- Time ON Adjustment: 30sec - 30min
60 Minutes with optional remote control IR10AB - (LUX) level adjustment: 10 - 2000
- Manual Override: Yes
- Class Protection: Class 2
- IP Rating: IP20
- Mains Supply: 220-240V AC 50Hz
- Load 1 for Lighting:
2200W Incandescent
2200W Halogen
1500w Fluorescent
600W LED - Load 2 for HVAC: Voltage free contacts:
Max 5A for 230V AC or 30V DC (resistive) 73W Motor - Construction: Polycarbonate
Dimensions (Dia x D):
105mmØ x 67mm
PIR Ceiling Projection: 23.5mm
Absence Detection
Upon entering the room the person switches on the light as normal, but on leaving the detector switches off the lighting automatically. Lights can also be switched off manually.
Presence Detection
Detectors will switch on lighting automatically when a person enters the room, and switches off lighting automatically when no movement is detected.
105mmØ x 67mm
PIR Ceiling Projection: 23.5mm
Absence Detection
Upon entering the room the person switches on the light as normal, but on leaving the detector switches off the lighting automatically. Lights can also be switched off manually.
Presence Detection
Detectors will switch on lighting automatically when a person enters the room, and switches off lighting automatically when no movement is detected.
Technical:PDFM361/2AB Instructions 7Mb pdf |
|
