LED Pro Photocell for Pro Floodlight - Black5012483013786LEDPROPCB

Loading …

Overall Dimensions (mm)
Height: 114m
Width: 78mm
Depth: 127mm
Dedicated Photocell for LEDPRO Floodlights
The Plug & Play IP55 photocell option has the same terminal link options
allows 2, 4, 6 or 8 hours timed on duration or continuous dusk to dawn settings.

A truly professional range offering mix and match options to cover all type of installations.
  • Dedicated 140W LED Photocell for use with Timeguard LEDPRO Floodlights.
  • Maximum Switchable Load: LED lamp –140W.
  • Fits ALL Timeguard LEDPRO floodlights.
  • Installer friendly captive terminal cover screws 2x cable entries suitable for PG11 gland (glands not supplied).

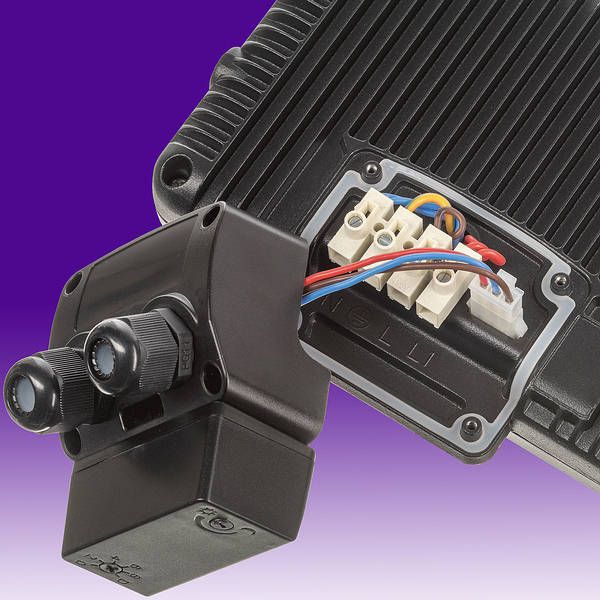

  • Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary.
  • 2, 4, 6 or 8 hours timed on duration or continuous Dusk to Dawn (adjustable).
  • Adjustable Lux setting.
  • Operating Voltage - 230V AC
  • Light ON Times - 2, 4, 6 or 8 Hours or Continuous (Dusk to Dawn)
  • Weatherproof Rating - IP55
  • EC Directives - Conforms to Latest Directives


PRO Range 359kb pdf PRO PCB Instructions 370kb pdf
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo SM PROPCB LED Pro Photocell for Pro Floodlight - Black New
