LED Pro RF PIR and remote for Pro Floodlight - Black5012483014738LEDPRORFKB
Loading …
Overall Dimensions (mm)
Height: 114m
Width: 78mm
Depth: 127mm
Height: 114m
Width: 78mm
Depth: 127mm
Timeguard
Dedicated RF Remote Kit for LEDPRO Range
Black
Dedicated RF Remote Kit for LEDPRO Range
Black
The Plug & Play IP55 PIR attachment, with a built-in RF receiver, is for use with all Timeguard LEDPRO floodlights.
It simply replaces the terminal cover and plugs into the LEDPRO floodlight
offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range.
The remote control fob has a handheld range of up to 100m and eliminates the need for a hard wired PIR override.
It simply replaces the terminal cover and plugs into the LEDPRO floodlight
offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range.
The remote control fob has a handheld range of up to 100m and eliminates the need for a hard wired PIR override.
- Dedicated 140W LED PIR detector for use with all Timeguard LEDPRO floodlights.
- RF Fob control eliminates the need for hard wired PIR override.

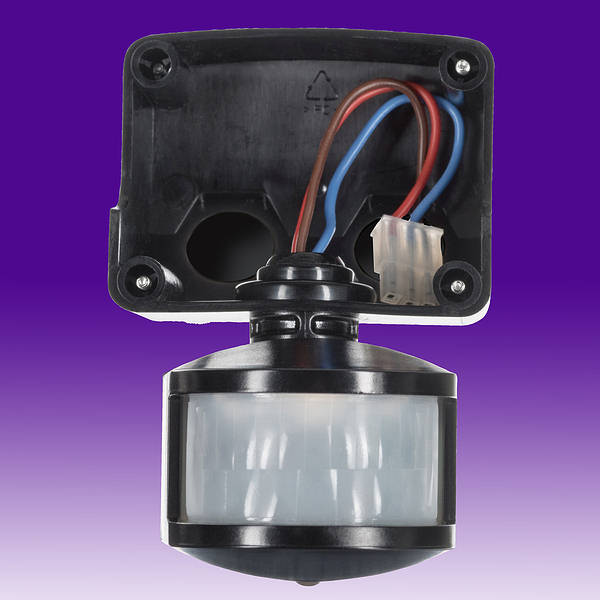

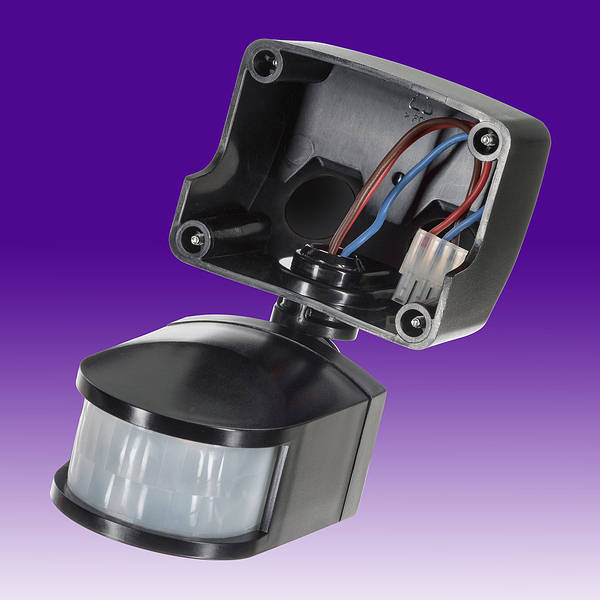

- Simply replaces the terminal cover and plugs into the LEDPRO floodlight – no extra cabling necessary.
- Installer friendly captive terminal cover screws
- 2 x cable entries supplied, suitable for PG11 gland (glands not supplied).
- 180° up to 12 metre detection.

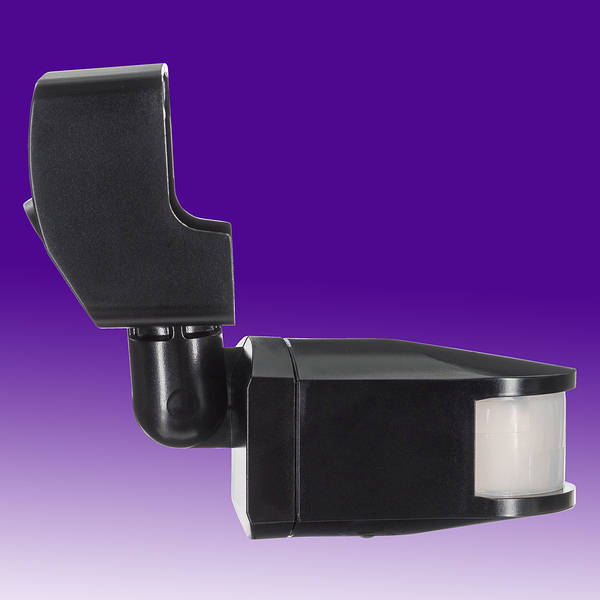

- Pan and tilt feature.
- Total PIR switching: 140W LED Lighting.

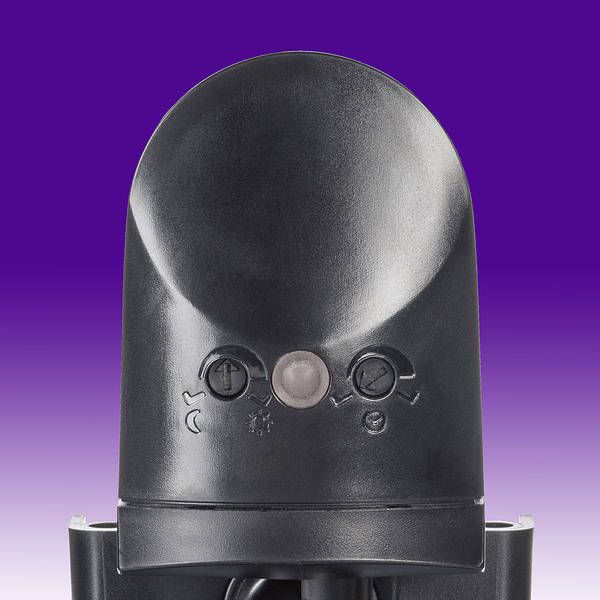

- Adjustable time setting 3 Seconds – 18 Minutes.
- Adjustable 2 – 1000 LUX setting.
- RF Fob control, up to 100m handheld range.

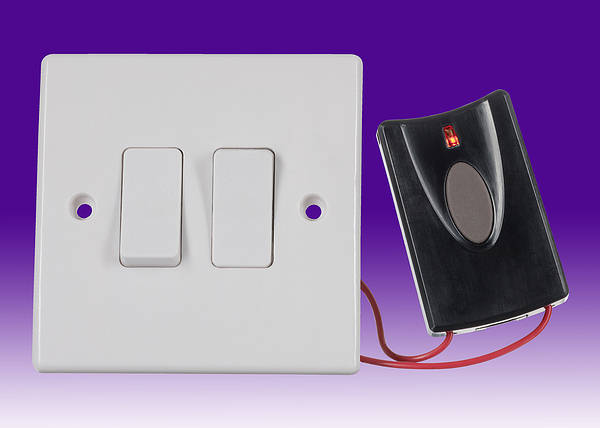

- Fob can also fit into a standard indoor/outdoor wall switch, eliminating the need to hard wire the PIR override switch.
- Operating Voltage -230V AC
- Lamp Load (Max) - 140W LED
- Weatherproof Rating - IP55
- Detection Range (Max) Metres – 12m
- Angle of Detection - 180º
- Light ON Time After Last Detection (Adjustable) - 3 Seconds (Min), 18 Minutes (Max)
- Permanent ON Facility - Electronic
- Remote Control - LEDPROFOB
- Remote Control Range - 100m (clear line of sight)
- Adjustable Light Level Control - Yes
- EC Directives - Conforms to Latest Directives
Technical:PRO Range 359kb pdf PRO RFKB Instructions 840kb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM PRORFKB | LED Pro RF PIR and remote for Pro Floodlight - Black New |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
 |
PB CR2032 | 3 volt Coin Lithium Battery - CR2032 - Panasonic or Duracell |
|
|
