LED Pro PIR for Pro Floodlight - Black5012483013779LEDPROSLB

Loading …

Overall Dimensions (mm)
Height: 91m
Width: 78mm
Depth: 73mm

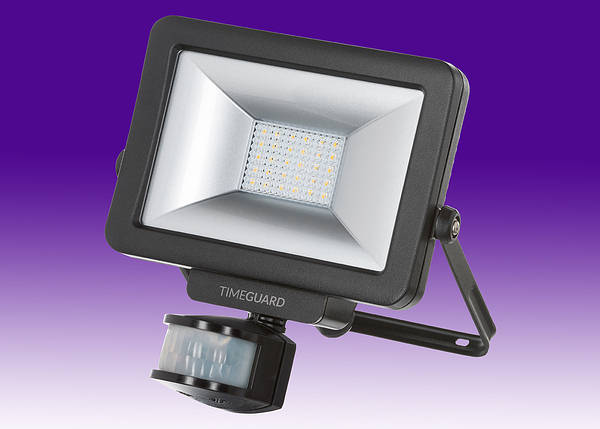

Dedicated PIR Detector for LEDPRO Floodlights
The Plug & Play IP55 PIR attachment simply replaces the terminal cover and plugs into the LEDPRO Floodlight
offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range.

Features include tilt and rotate adjustable head, timed on adjustable control and manual override.
A truly professional range offering mix and match options to cover all type of installations.
  • Dedicated 140W LED PIR for use with Timeguard LEDPRO floodlights.
  • Maximum Switchable Load: LED lamp –140W
  • Operating Temperature -20°C to +40°C.
  • Fits ALL Timeguard LEDPRO floodlights.

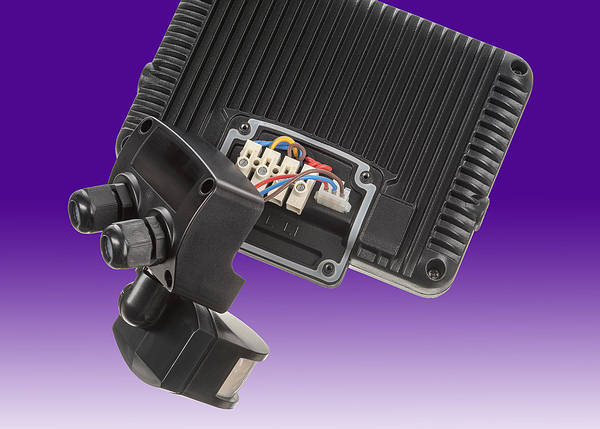

  • Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary.
  • Installer friendly captive terminal cover screws

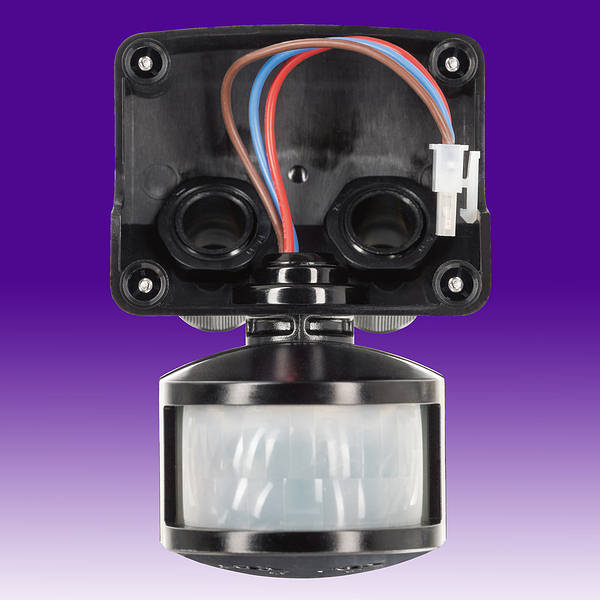

  • 2 x cable entries suitable for PG11 gland(glands not supplied).
  • 12 metre 180° detection.
  • Tilt and rotate adjustable head for accurate reliable detection.
  • 3 seconds – 18 minutes timed duration (adjustable).

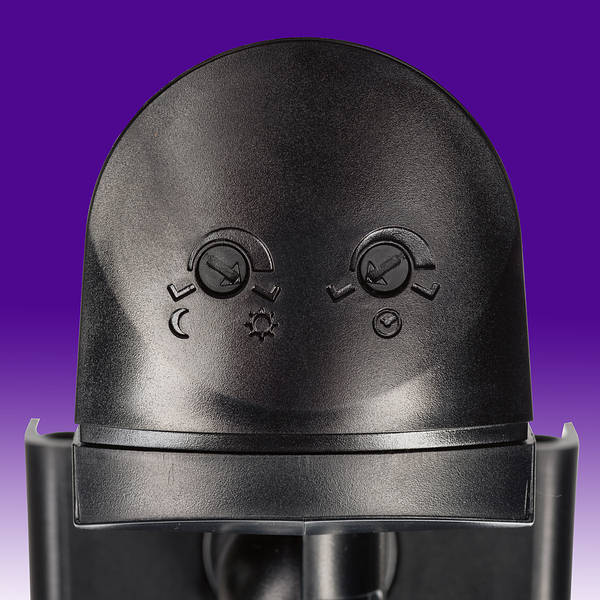

  • Photocell sensor (adjustable) and manual override function.
  • Complete with masking kit.
  • Operating Voltage - 230V AC
  • Lamp Load (Max) - 140W LED
  • Weatherproof Rating - IP55
  • Detection Range (Max) - Metres 12m
  • Angle of Detection 180º
  • Light ON Time After Last Detection (Adjustable) - 3 Seconds (Min), 18 Minutes (Max)
  • Permanent ON Facility - Electronic
  • Adjustable Light Level Control - Yes
  • EC Directives - Conforms to Latest Directives


PRO Range 359kb pdf PRO SLB Instructions 610kb pdf
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo SM PROSLB LED Pro PIR for Pro Floodlight - Black New
