Overall Dimensions (mm)
Height: 91m
Width: 78mm
Depth: 73mm
Timeguard

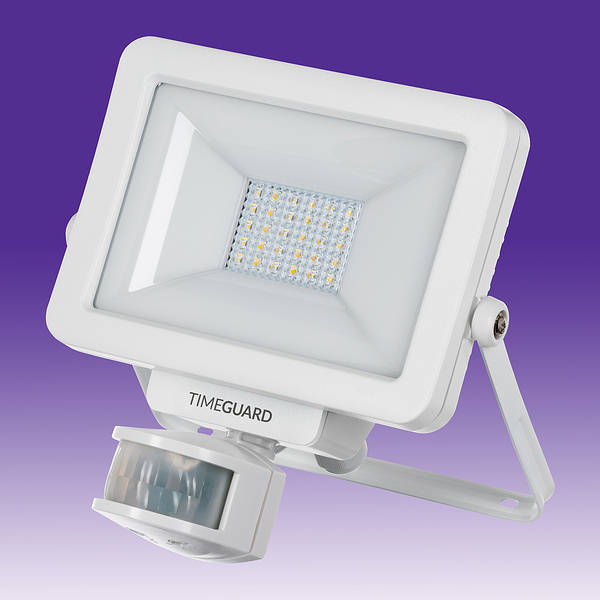

Dedicated PIR Detector for LEDPRO Floodlights
White

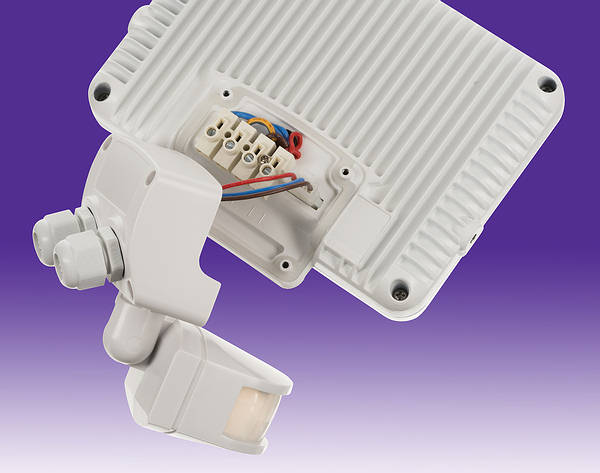

The Plug & Play IP55 PIR attachment simply replaces the terminal cover and plugs into the LEDPRO Floodlight
offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range.

Features include tilt and rotate adjustable head, timed on adjustable control and manual override.
A truly professional range offering mix and match options to cover all type of installations.
  • Dedicated 140W LED PIR for use with Timeguard LEDPRO floodlights.
  • Maximum Switchable Load: LED lamp –140W
  • Operating Temperature -20°C to +40°C.
  • Fits ALL Timeguard LEDPRO floodlights.
  • Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary.
  • Installer friendly captive terminal cover screws
  • 2 x cable entries suitable for PG11 gland(glands not supplied).
  • 12 metre 180° detection.
  • Tilt and rotate adjustable head for accurate reliable detection.
  • 3 seconds – 18 minutes timed duration (adjustable).
  • Photocell sensor (adjustable) and manual override function.
  • Complete with masking kit.
  • Operating Voltage - 230V AC
  • Lamp Load (Max) - 140W LED
  • Weatherproof Rating - IP55
  • Detection Range (Max) - Metres 12m
  • Angle of Detection 180º
  • Light ON Time After Last Detection (Adjustable) - 3 Seconds (Min), 18 Minutes (Max)
  • Permanent ON Facility - Electronic
  • Adjustable Light Level Control - Yes
  • EC Directives - Conforms to Latest Directives

Technical:

PRO Range 359kb pdf PRO SLB Instructions 610kb pdf
